Section 03-06: Starting System | 1996 F-Series and Bronco Workshop Manual |
Removal
WARNING: WHEN SERVICING STARTER MOTOR RELAY OR PERFORMING ANY MAINTENANCE IN THE AREA OF THE STARTER MOTOR RELAY, NOTE THE HEAVY-GAUGE INPUT LEAD CONNECTED TO THE RELAY IS HOT AT ALL TIMES.
Disconnect battery ground cable.
Tag all wires to aid in installation.
Remove wiring terminal attaching nuts.
Remove wiring from starter relay terminals.
Remove attaching screws and starter relay.
Installation
Follow removal procedures in reverse order.

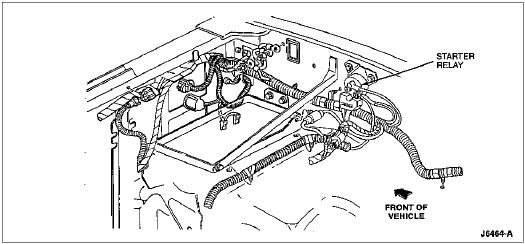

Starter Relay Location
