Section 03-04C: Fuel Charging and Controls, 7.5L Engine | 1996 F-250, F-350 and F-Super Duty Vehicles Equipped with 7.5L MFI V-8 Engines Workshop Manual |

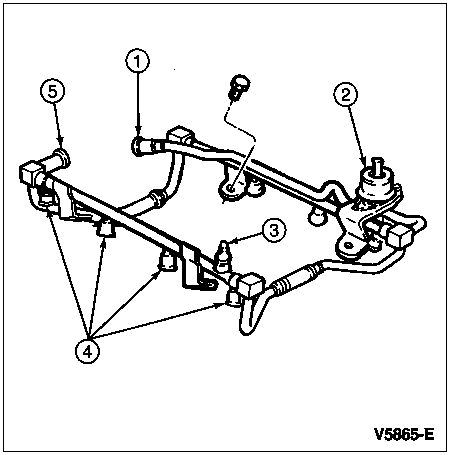

The fuel injection supply manifold (9F792) delivers high-pressure fuel from the vehicle fuel supply line to the eight fuel injectors (9F593). The fuel injection supply manifold consists of two banks of tubular fuel rails connected by two permanent crossover connections, eight injector connectors, a mounting flange to the fuel pressure regulator (9C968) and mounting attachments that locate the fuel injection supply manifold and provide fuel injector retention. The fuel inlet and return have push-connect fittings. The unit is serviced as an assembly only.
| Item | Part Number | Description |
|---|---|---|
| 1 | — | Fuel Return (Part of 9F792) |
| 2 | 9C968 | Fuel Pressure Regulator |
| 3 | 9H321 | Fuel Pressure Relief Valve |
| 4 | — | Injector Pockets (Part of 9F792) |
| 5 | — | Fuel Inlet (Part of 9F792) |
