Section 03-04A: Fuel Charging and Controls, 4.9L Engine | 1996 Vehicles Equipped with 4.9L SFI Engines Workshop Manual |
The air induction system supplies filtered air to the engine (6007) to mix with the fuel for combustion purposes. The air induction system consists of an engine air cleaner hot air tube (9652), engine air cleaner (ACL) (9600) with air cleaner element (ACL element) (9601), air cleaner outlet tube (9B659), mass air flow sensor (MAF sensor) (12B579), throttle body (9E926), and intake manifold (9424). For more information on the air induction system, refer to Section 03-12.

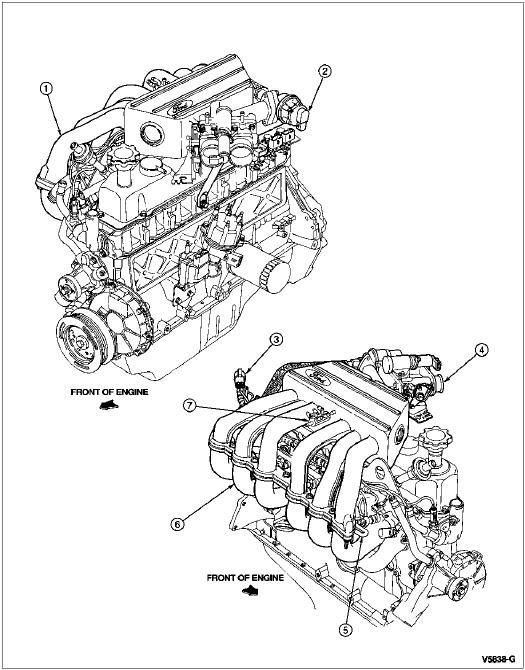

4.9L Sequential Multiport Fuel Injection (SFI) Engine
| Item | Part Number | Description |
|---|---|---|
| 1 | 9424 | Intake Manifold (Upper) |
| 2 | 9F483 | EGR External Pressure Valve |
| 3 | 9D930 | Fuel Charging Wiring |
| 4 | 9E926 | Throttle Body |
| 5 | 9D280 | Fuel Injection Supply Manifold |
| 6 | 9424 | Intake Manifold (Lower) |
| 7 | 9A474 | Intake Manifold Vacuum Outlet Fitting and Cap |
