Section 03-01D: Engine, Diesel, 7.3L | 1996 F-Series Workshop Manual |
Removal
Remove the transmission (7003) and integral clutch housing. Refer to Section 07-03B.
Remove the clutch pressure plate and disc. Refer to Section 08-01.
Remove two flywheel attaching bolts and install two guide studs to help support the flywheel during removal.
Remove the remaining seven flywheel attaching bolts, reinforcement ring and flywheel.

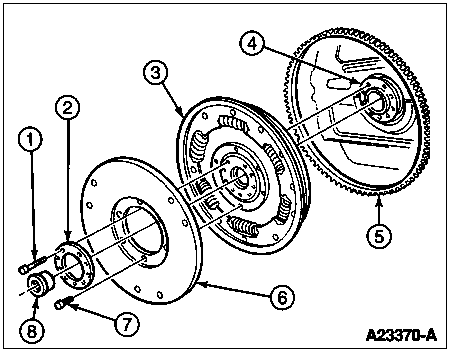

| Item | Part Number | Description |
|---|---|---|
| 1 | 6379 | Flywheel Attaching Bolt (10 Req'd) |
| 2 | 6A366 | Flywheel Reinforcing Plate |
| 3 | 6375 | Primary Flywheel |
| 4 | — | Crankshaft Flange (Part of 6303) |
| 5 | 6384 | Flywheel Ring Gear |
| 6 | — | Secondary Flywheel (Part of 6477) |
| 7 | — | Secondary Flywheel Bolts with Washers (6 Req'd) (Part of 6477) |
| 8 | 7600 | Pilot Bearing |
Installation
With the two guide studs installed, install the flywheel (6375).
Remove the two guide studs and install the remaining two flywheel attaching bolts. Tighten bolts to 121 Nm (89 lb-ft).
Install the clutch pressure plate and disc. Refer to Section 08-01.
Install the transmission and integral clutch housing. Refer to Section 07-03B.
