Section 03-01D: Engine, Diesel, 7.3L
1996 F-Series Workshop Manual
REMOVAL AND INSTALLATION

Compressor Manifold and Hoses

Removal

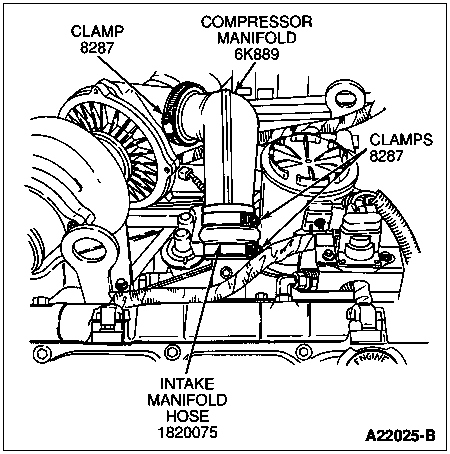

  1. Loosen the four intake manifold hose clamps and one clamp retaining the compressor manifold to the turbocharger.

  1. Remove the compressor manifold.

  1. Loosen the hose clamps and remove the intake manifold hoses.

Installation

  1. Install the intake manifold hoses on the intake manifold covers.

  1. Install the compressor manifold.

  1. Tighten the hose clamps and the marmon clamp at the turbocharger.
