Section 03-01C: Engine, 7.5L MFI
1996 F-250, F-350, F-Super Duty Chassis Cab and Motorhome Workshop Manual
IN-VEHICLE SERVICE

Sensors

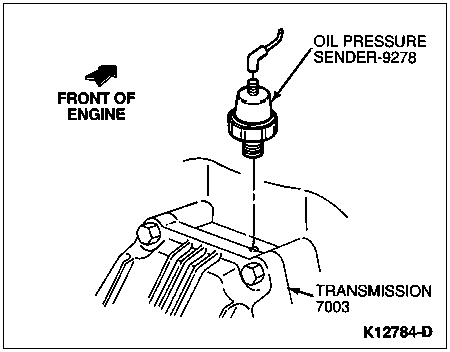

Oil Pressure Sender

Removal

  1. Disconnect the wire at the oil pressure sensor (9278).

  1. Prepare the new oil pressure sensor for installation by applying Pipe Sealant with Teflon® D8AZ-19554-A or equivalent meeting Ford specification WSK-M2G350-A2 or a small amount of electrically conductive sealer to the threads.

  1. Remove the oil pressure sensor from its mounting.

Installation

  1. Immediately install the new oil pressure sensor. Tighten to 11-24 Nm (8-18 lb-ft).

  1. Connect wire to oil pressure sensor.

  1. Start the engine (6007) and check the operation of the oil pressure sensor.
