Add one quart of oil. Operate the engine (6007) at fast idle and check for oil leaks. If oil leaks are evident, perform the necessary repairs to correct the leakage. Check the oil level and fill the crankcase to the correct level.
Section 03-01C: Engine, 7.5L MFI | 1996 F-250, F-350, F-Super Duty Chassis Cab and Motorhome Workshop Manual |
Removal

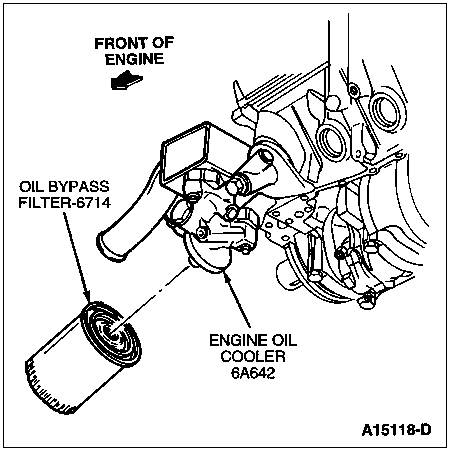

Place a drip pan under the oil bypass filter (6714). Unscrew the oil bypass filter from the engine oil cooler (6B856) using an oil filter wrench. Clean the oil filter mounting insert (6890) or engine oil cooler recess. Clean the oil bypass filter gasket surface. Make sure oil bypass filter gasket is not stuck on oil filter mounting insert or engine oil cooler.
Installation
Coat the oil bypass filter gasket on a new oil bypass filter with specified engine oil. Place the new oil bypass filter on the oil filter mounting insert or engine oil cooler. Hand-tighten the oil bypass filter until the oil bypass filter gasket contacts the sealing surface, then tighten another one-half turn.
Add one quart of oil. Operate the engine (6007) at fast idle and check for oil leaks. If oil leaks are evident, perform the necessary repairs to correct the leakage. Check the oil level and fill the crankcase to the correct level.
Engine Oil Cooler
Removal
Drain the engine cooling system. Refer to Section 03-03.
Raise the vehicle. Refer to Section 00-02.
Remove the oil bypass filter.
Disconnect the lower radiator hose (8286) from the engine oil cooler.
Loosen the hose clamp securing the engine oil cooler hose to the water pump (8501).
Remove the oil filter adapter mounting bolt (6894).
Disconnect the engine oil cooler hose at the water pump and remove the engine oil cooler.
Disconnect the engine oil cooler hose from the engine oil cooler.
If necessary, remove the oil filter mounting insert.
Clean the engine oil cooler with a commercially available, environmentally safe solvent and dry with compressed air.
Inspect the engine oil cooler for sludge deposits, housing cracks, bent hose connections or other visible damage. Replace the engine oil cooler if any damage is found.
Installation

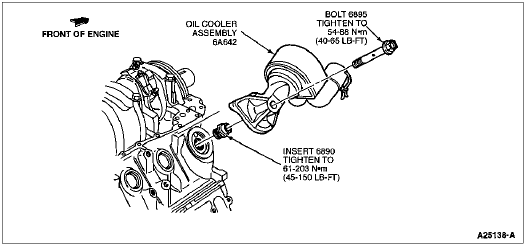

If removed, install the oil filter mounting insert and tighten to 61-203 Nm (45-150 lb-ft).
Connect the engine oil cooler hose to the engine oil cooler and slide both hose clamps over the engine oil cooler hose.
Push the engine oil cooler hose onto the water pump inlet until bottomed against inlet ridge. Align arrow on engine oil cooler hose with notch on inlet ridge.
Install the engine oil cooler by piloting the adapter portion onto the oil filter mounting insert.
Install the oil filter adapter mounting bolt and tighten to 54-88 Nm (40-65 lb-ft).
Tighten both hose clamps securing the engine oil cooler hose to 1.6-2.8 Nm (15-25 lb-in).
Connect the lower radiator hose to the engine oil cooler and tighten the hose clamp to 3-4 Nm (27-35 lb-in).
Coat the oil bypass filter gasket on a new oil bypass filter with specified engine oil. Place the new oil bypass filter on the engine oil cooler and hand-tighten until the oil bypass filter gasket contacts the sealing surface, then tighten an additional one-half turn.
Lower the vehicle. Refer to Section 00-02.
Fill the crankcase with the proper grade and quantity of engine oil.
Fill and bleed the engine cooling system. Refer to Section 03-03.
Operate the engine at fast idle and check for engine oil and coolant leaks. If leaks are evident, perform the necessary repairs to correct the leakage.
