Section 03-01A: Engine, 4.9L SFI
1996 F-150, F-250, F-350 (4x2), F-150, F-250 (4x4) Workshop Manual
IN-VEHICLE SERVICE

Rocker Arm




Removal

  1. Remove valve cover (6582) and valve cover gasket (6584). Refer to Valve Cover and Gasket in the In-Vehicle Service portion of this section.

  1. Remove the valve rocker arm bolt, rocker arm seat (6A528), and rocker arm (6564). If removing a pair of rocker arms, also remove rocker arm fulcrum guide (6A588).



Installation

  1. Apply Multi-Purpose Grease D0AZ-19584-AA or equivalent meeting Ford specifications ESB-M1C93-B and ESR-M1C159-A to the top of the valve stem.

  1. Apply Multi-Purpose Grease D0AZ-19584-AA or equivalent meeting Ford specifications ESB-M1C93-B and ESR-M1C159-A to the rocker arm seat, the rocker arm fulcrum guide, and the rocker arm seat socket in the rocker arm.

  1. If removed, position the rocker arm fulcrum guide.

  1. Install rocker arm, rocker arm seat, and bolt.

  1. Adjust the valve clearance. Refer to Valve Clearance in the Adjustments portion of this section.

  1. Install valve cover. Refer to Valve Cover and Gasket in the In-Vehicle Service portion of this section.

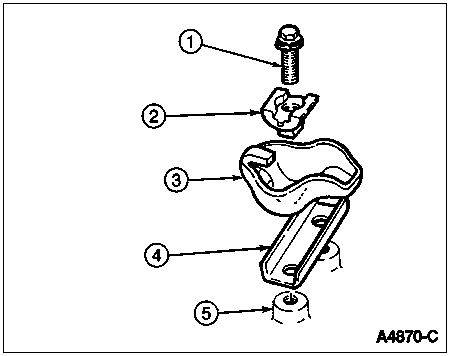

    ItemPart NumberDescription
    1390385Bolt, 5/16-18 x 1.35
    26A528Rocker Arm Seat
    36564Rocker Arm
    46A588Rocker Arm Fulcrum Guide
    5—Threaded Pedestal
    (Part of 6049)
