Section 03-00: Engine, Service | 1996 All F-150, F-250, F-350, F-Super Duty and Bronco Vehicles Equipped with 4.9L, 5.0L, 5.8L or 7.5L Gasoline Engines, and 7.3L Diesel Engines Workshop Manual |
Cleaning
Clean all parts thoroughly. Make sure all oil passages are open.
Make sure oil passage in the push rod end of the rocker arm (6564) is open.
Inspection

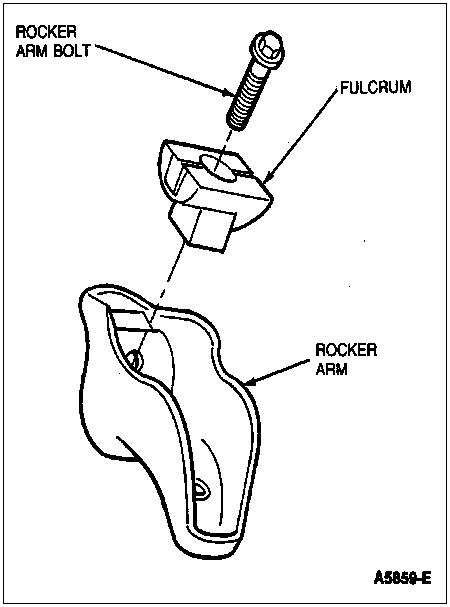

Inspect the rocker arm seat (6A528) and the rocker arm bore for nicks, scratches, scores or scuffs. Replace any damaged parts.
CAUTION: Do not attempt to true surface by grinding. On pedestal-mounted rocker arms, check the rocker arm pad, side rails and fulcrum seat for excessive wear, cracks, nicks or burrs. Check the rocker arm bolt for stripped or broken threads.
Inspect the pad at the valve end of the rocker arm for indications of scuffing or abnormal wear. If the pad is grooved, replace the rocker arm.
