Frame and Crossmembers, F-150, F-250, F-350, F-Super Duty Chassis Cab and Bronco
Section 02-01: Frame | 1996 F-150, F-250, F-350, F-Super Duty Chassis Cab and Bronco Workshop Manual |
NOTE: F-Super Duty Motorhome Chassis crossmember numbering differs from F-150, F-250, F-350 crossmember numbering. When replacing crossmembers on these vehicles, make sure to specify the correct crossmember location. For crossmember part numbers, refer to the Light Truck Master Parts and Accessories Catalog.

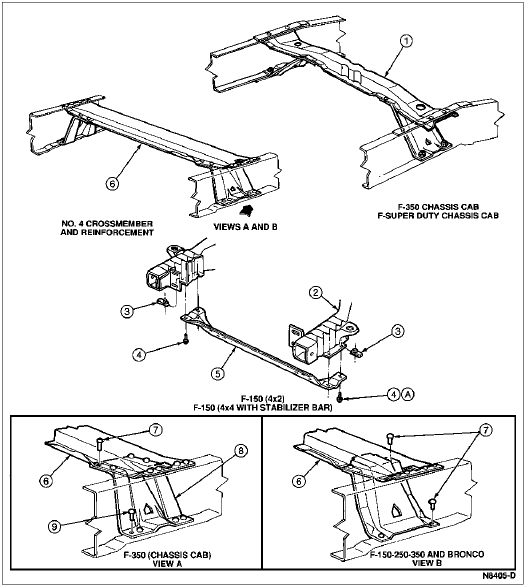

The following illustrations serve as guides to the removal and installation of frame (5005) and crossmembers.
Frame and Crossmembers, F-150, F-250, F-350, F-Super Duty Chassis Cab and Bronco
| Item | Part Number | Description |
|---|---|---|
| 1 | 5028 | Crossmember, No. 3 |
| 2 | 5005 | Frame |
| 3 | N801107-S100 | Nut |
| 4 | N605919-S2 | Bolt |
| 5 | 5C128 | Crossmember |
| 6 | 5030 | Crossmember, No. 4 |
| 7 | N647096 | Rivet |
| 8 | 5135 | Crossmember, No. 4 Reinforcement |
| 9 | N647097 | Rivet |
| A | — | Tighten to 34-46 Nm (25-34 Lb-Ft) |

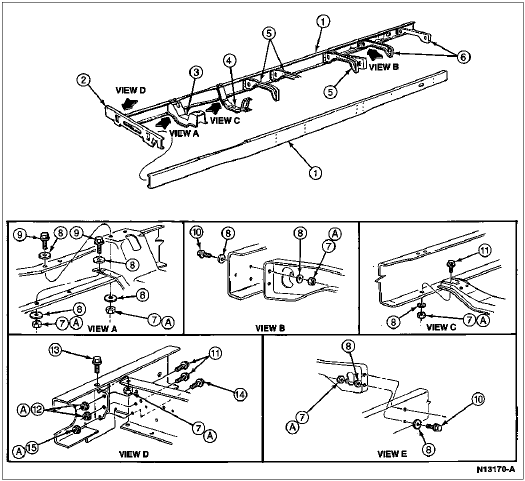

| Item | Part Number | Description |
|---|---|---|
| 1 | 5005 | Frame Side Rail |
| 2 | 5020 | Crossmember |
| 3 | 5026 | Crossmember |
| 4 | 5028 | Crossmember |
| 5 | 5030 | Crossmember |
| 6 | 5C054 | Crossmember |
| 7 | N620469-S2 | Nut |
| 8 | N630089-S | Washer |
| 9 | N601798-S2 | Bolt |
| 10 | N601414-S100 | Bolt |
| 11 | N605829-S2 | Bolt |
| 12 | N620484-S2 | Nut |
| 13 | N802114-S2 | Bolt |
| 14 | N605804-S2 | Bolt |
| 15 | N620482-S2 | Nut |
| A | — | Tighten to 60-80 Nm (44-59 Lb-Ft) |
