Sensor, Safing, Rear, RH

Removal

1.  WARNING: THE ELECTRICAL CIRCUIT NECESSARY FOR SYSTEM DEPLOYMENT IS POWERED DIRECTLY FROM THE BATTERY AND BACKUP POWER SUPPLY. TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE POSITIVE BATTERY CABLE MUST BE DISCONNECTED FOR ONE MINUTE PRIOR TO SERVICING OR REPLACING ANY SYSTEM COMPONENTS.

   NOTE: To service stripped retaining screws, replace old screws with N808845-S190. Tighten to 10-14 Nm (8-10 lb-ft).

   Disconnect battery positive cable and wait one minute for backup power supply energy to be depleted.

2. Remove RH rear corner trim panel (278D12). Refer to Section 01-05.

3. Disconnect sensor wiring connector from wiring assembly connector.

4. Remove rear corner trim panel. Remove sensor.

Installation

1. Position sensor to rear corner trim panel.

2. Secure sensor with two retaining screws. Tighten to 8-10 Nm (71-89 lb-in).

3. Connect sensor wiring connector to wiring assembly connector.

4. Install RH rear corner trim panel.

5. NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the powertrain control module (PCM) (12A650) relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

   Connect battery positive cable.

6. Verify air bag indicator.

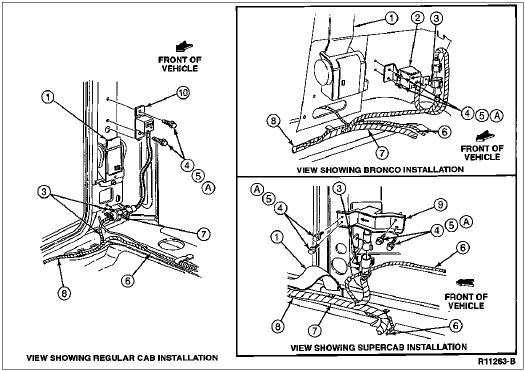

   Safing Sensor Installation



   Item	Part Number	Description
   1	611B08	Seat Belt
   2	14B004	Front Air Bag Sensor and Bracket (Bronco)
   3	—	Locator (Position in Hole Provided) (Part of 14401)
   4	N806327-S190	Screw (3 Req'd)
   5	N8088545-S190	Repair Screw (3 Req'd)
   6	14401	Wiring Assembly
   7	14401	Wiring Assembly
   8	14401	Wiring Assembly
   9	14B004	Front Air Bag Sensor and Bracket (SuperCab)
   10	14B004	Front Air Bag Sensor and Bracket (Regular Cab)
   A	—	Tighten to 10-14 Nm (8-10 Lb-Ft)
