Section 01-20A: Restraints, Active | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal
Pull off the shoulder strap guide cover.

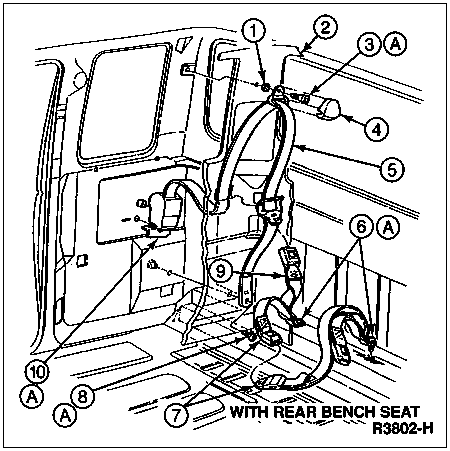

| Item | Part Number | Description |
|---|---|---|
| 1 | N805266-S | Felt Washer |
| 2 | 60230 | Corner Trim Panel |
| 3 | 386392-S100 | Bolt, Upper Anchor |
| 4 | 60262 | Shoulder Strap Guide Cover |
| 5 | 611B68 | Safety Belt Retractor and Tongue, RH |
| 6 | — | Bolt, Floor Anchor (Part of 611B66) |
| 7 | 611B66 | Center Passenger Belt |
| 8 | 386274-S100 | Bolt, Side Panel Anchor |
| 9 | — | Buckle End (Part of 611B66) |
| 10 | — | Bolt, Retractor Anchor (Part of 611B68) |
| A | — | Tighten to 35-45 Nm (26-33 Lb-Ft) |
Remove the upper anchor bolt.
Remove the side panel anchor bolt.
Pull off the corner trim panel enough to access the retractor anchor bolt.
Remove the retractor anchor bolt.
NOTE: Safety belt buckles, center adjust tongues, and belt and retractor assemblies can be replaced separately. However, if a safety belt assembly was in use during a collision, the belt and retractor must be replaced as well as the center adjust tongue and belt and buckle assembly or the center adjust tongue and the cable and buckle assembly. When replacing safety belt and buckles, safety cable and buckles, center adjust tongues and belt and retractors, use only the replacement parts specified in the Ford Master Parts Catalogs for the make and model of the vehicle being serviced. Safety belt assemblies must not be interchanged between vehicle models.
Feed the belt, tongue and D-ring down through the corner trim panel and remove the rear safety belt retractor and tongue from the vehicle.
Installation
To install, reverse the removal procedure. Use Ford Caulking Cord D6AZ-19560-A to seal floor anchor holes. Tighten all anchor bolts to 35-45 Nm (26-33 lb-ft). Check the restraint system for proper operation.
