Section 01-20A: Restraints, Active
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Safety Belts, Rear Seats, Bronco



Retractor and Tongue

Removal

SPECIAL SERVICE TOOL(S) REQUIRED
DescriptionTool Number
Safety Belt Bolt Bit (No. 50 Torx®)T77L-2100-A

  1. Remove shoulder strap guide cover. Remove the upper anchor bolt using Safety Belt Bolt Bit (No. 50 Torx®) T77L-2100-A.

  1. Remove quarter trim panel. Refer to Section 01-05.

  1. Remove the retractor anchor nuts from rear safety belt retractor and tongue and lower anchor bolt using the Safety Belt Bolt Bit.

  1. Remove the rear safety belt.

Installation

  1. Follow removal procedures in reverse order.

  1. Check sealer around floor anchor bolt holes and, if required, add Ford Caulking Cord D6AZ-19560-A or equivalent meeting Ford specification ESB-M4G32-A.

  1. Install and tighten anchor bolts to 35-45 Nm (26-33 lb-ft).

  1. Check the restraint system for proper operation.

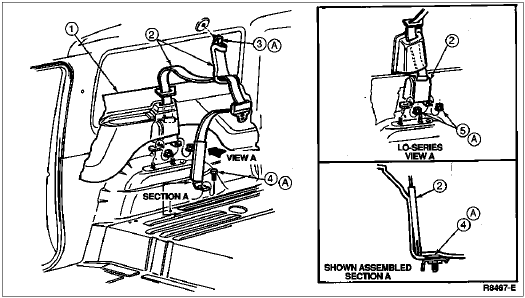

Safety Belts, Rear Outboard, Bronco





ItemPart NumberDescription
131012Quarter Trim Panel
2611B68Rear Safety Belt Retractor and Tongue
3386277-S100Upper Anchor Bolt
4386273-S100Lower Anchor Bolt
5620482-S100Retractor Anchor Nut — M12
A—Tighten to 35-45 Nm
(26-33 Lb-Ft)

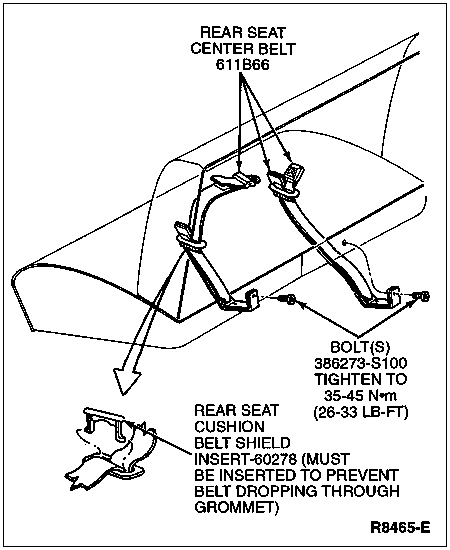

Buckle End, Bronco

Removal

  1. At the back of the rear seat, remove the anchor bolt for the RH or LH safety belt buckle end, as necessary.

  1. Remove the RH or LH rear seat cushion belt shield insert as necessary.





  1. Feed the buckle end assembly down through the seat cushion and pull it out from the back before anchoring it to the floor.

Installation

To install, reverse the removal procedure. Tighten the anchor bolt to 35-45 Nm (26-33 lb-ft). Check the restraint system for proper operation.
