Section 01-19: Bumpers
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Air Deflector, F-Series with 7.3L Diesel Engine

Removal

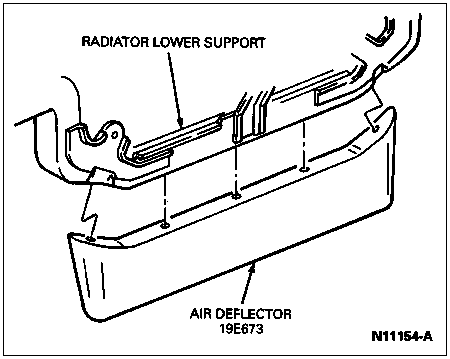

  1. Remove eight rivets attaching the air deflector to the radiator support.

  1. Remove the air deflector.

Installation

  1. Install the air deflector to radiator support.

  1. Install eight rivets.
