Section 01-14A: Handles, Locks, Latches and Mechanisms | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal
Remove tailgate inside panel cover retaining screws. Remove panel.
Disconnect two tailgate latch release links from tailgate latch remote control (43170).
If removing handle and tailgate latch remote control, remove two nut and washer assemblies to tailgate outside panel (40710).
Remove screws attaching tailgate latch bracket (431D76).
Remove by sliding out link of tailgate.
Remove link from tailgate latch bracket.
Remove screw retaining tailgate support cable to tailgate latch bracket. Remove cable.
Installation
NOTE: Prior to installation, take out the slack in links and latches by pulling link to center of tailgate. Close plastic clip over closest thread of link.
Follow removal procedures in reverse order.

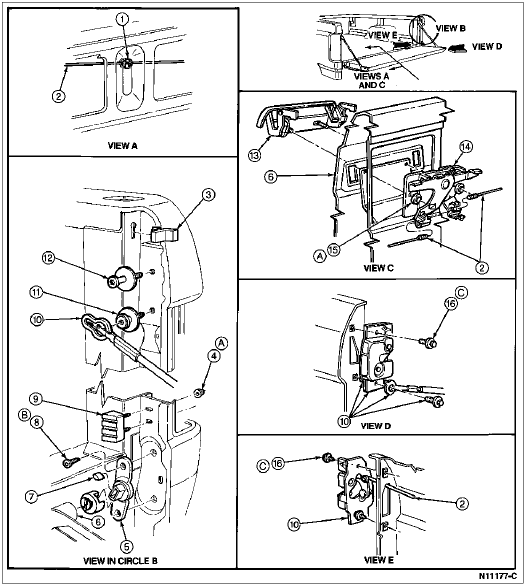

| Item | Part Number | Description |
|---|---|---|
| 1 | N805996-S | Clip |
| 2 | 43868 | Tailgate Latch Release Link |
| 3 | 44482 | Tailgate Support Retaining Bumper |
| 4 | N621906-S54 | Nut and Washer Assembly |
| 5 | 430B38 | Tailgate Hinge Roller |
| 6 | 40700 | Tailgate |
| 7 | 430B44 | Tailgate Hinge Roller Insert |
| 8 | N804563-S100 | Screw |
| 9 | 439A00 | Tailgate Bumper |
| 10 | 431D76 | Tailgate Latch Bracket |
| 11 | N805156-S39 | Screw and Washer |
| 12 | 432A06 | Striker |
| 13 | 431C62 | Tailgate Latch Release Handle |
| 14 | 43170 | Tailgate Latch Remote Control |
| 15 | N620480-S36 | Nut and Washer |
| 16 | N808267-S100 | Screw and Washer |
| A | — | Tighten to 9-14 Nm (80-124 Lb-In) |
| B | — | Tighten to 35-55 Nm (26-41 Lb-Ft) |
| C | — | Tighten to 25-34 Nm (18-26 Lb-Ft) |
