Section 01-14A: Handles, Locks, Latches and Mechanisms
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Actuator, Power Door Lock

Removal

  1. Remove front door trim panel (23942). Refer to Section 01-05.

  1. Drill out power door lock actuator (218A42) retaining pop rivet.

  1. Disconnect wire harness connector on power door lock actuator.

  1. Disconnect latch lock rod from power door lock actuator.

  1. Remove power door lock actuator.

Installation

  1. Follow removal procedures in reverse order.

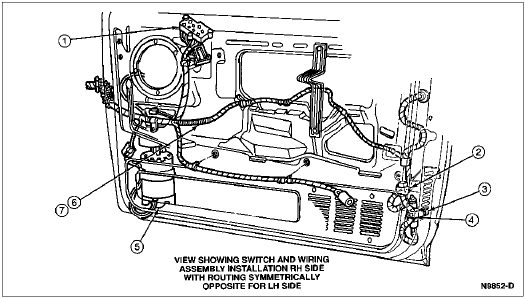

Door Lock Actuator and Control Switch Wiring, F-150, F-250, F-350 and Bronco





ItemPart NumberDescription
1—Window Regulator and Door Lock Control Switch Connector
2—Door Disarm Pigtail
3218A42Power Door Lock Actuator
4—Wiring Harness Locator Hole
523394Window Regulator Electric Drive
614A509 (LH)Wiring Assembly
714529 (RH)Wiring Assembly
