Section 01-12: Instrument Panel and Console | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal
Remove one screw which is accessible at the front of the roof console.
Gently pull console downward to release the three spring trim clips.
Disconnect the electrical connector.
Installation
Connect the electrical connector to the vehicle connector.
Position console on roof headliner by pressing firmly upward near the compass and interior lamp buttons to engage the attaching clips.
Drive one screw through console housing at the front of the roof console.

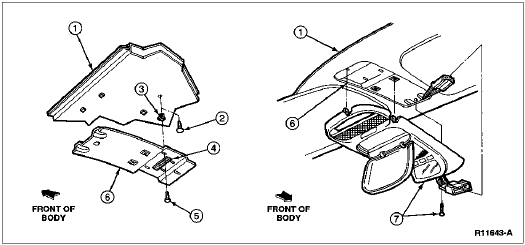

| Item | Part Number | Description |
|---|---|---|
| 1 | 51944 | Roof Trim Panel |
| 2 | 390964-S | Pushpin (Without Headliner) |
| 3 | 383356-S | Nut (with Headliner) |
| 4 | ESB-M36102-A | Tape |
| 5 | 55926-558 | Screw (4 Req'd) |
| 6 | 045B34 | Console Mounting Rear Bracket |
| 7 | 519A58 | Roof Console Assembly |
