Section 01-12: Instrument Panel and Console
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Console Panel, Floor

Removal

  1. Remove cup holders and attaching screws from the base of the console panel (045A36).

  1. Remove the console panel from the vehicle.

Installation

  1. Position console panel into vehicle.

  1. Install attaching screws to the base of console panel.

  1. Install cup holders.

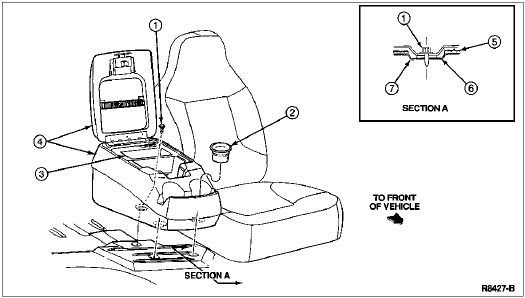

Console Assembly, Floor-Mounted





ItemPart NumberDescription
1N804421-S36Screw and Washer Assembly (3 Req'd)
2046B94Cupholder
319A089Stereo Tape Cartridge Container
4045A36Console Panel
513000Floor Carpet
611135Front Floor Pan
720552Body Opening Sound Insulator
