Console, Seat-Mounted

Removal

1. Lift the console up and forward to disengage from the shoulder bolts.

2. Remove the console from the vehicle.

Installation

1. Position console to vehicle.

2. Tilt console forward then down to engage shoulder bolts.

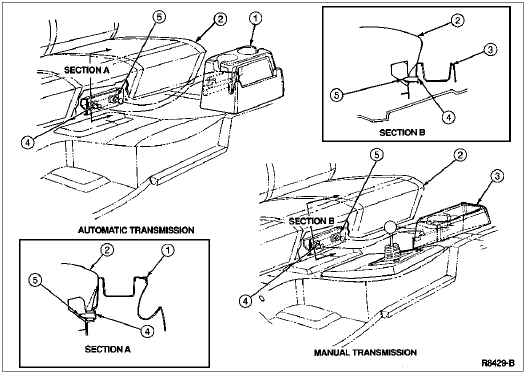

   Console Assembly, Seat-Mounted







   Item	Part Number	Description
   1	045A36	Console Panel (Automatic Transmission)
   2	632A22	Front Seat Cushion Pad
   3	45A36	Console Assembly, Panel (Manual Transmission and All 4x4)
   4	N806632-S58	Shoulder Bolt (2 Req'd)
   5	N623332-S100	Spring Nut (2 Req'd)
