Section 01-11: Glass, Frames and Mechanisms
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

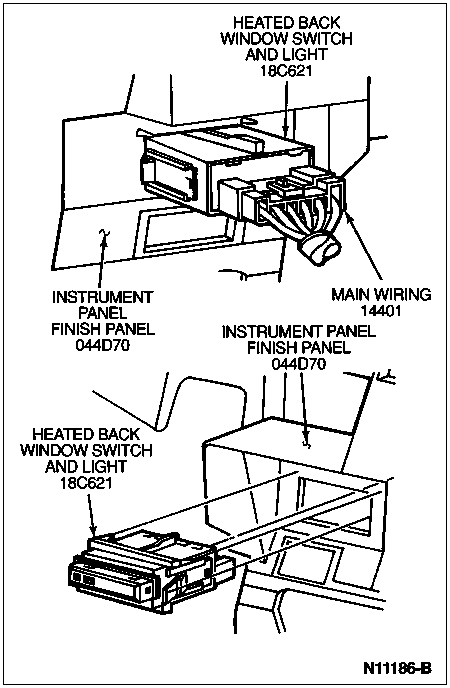

Heated Back Window Switch and Light and Miniature Bulb

Removal

  1. Remove instrument panel finish panel (044D70). Refer to Section 01-12.

  1. Disconnect main wiring (14401).

  1. Depress spring locking tabs on heated back window switch and light (18C621) and push out of instrument panel finish panel.

  1. Pull the miniature bulb from the heated back window switch and light.



Installation

  1. Follow the removal procedures in reverse order.
