Section 01-11: Glass, Frames and Mechanisms
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Tailgate, Window Regulator Control Switch, Instrument Panel-Mounted, Bronco

NOTE: The tailgate switch is located next to the headlamp switch in the instrument panel (04320).

Removal

  1. NOTE: The finish panel is held in place by four retaining clips on the instrument panel holding four plastic fingers on the finish panel. Care should be taken not to break the four plastic fingers when prying the finish panel off.

    Using a thin-bladed screwdriver or a small putty knife, carefully pry off the lower left finish panel by starting at the upper left corner of the finish panel and working counterclockwise around the perimeter of the finish panel.

  1. Remove the two screws retaining window regulator control switch (14529).

  1. Remove the window regulator control switch from the finish panel.

  1. Disconnect window regulator control switch from main wiring (14401).



Installation

  1. Follow removal procedures in reverse order.

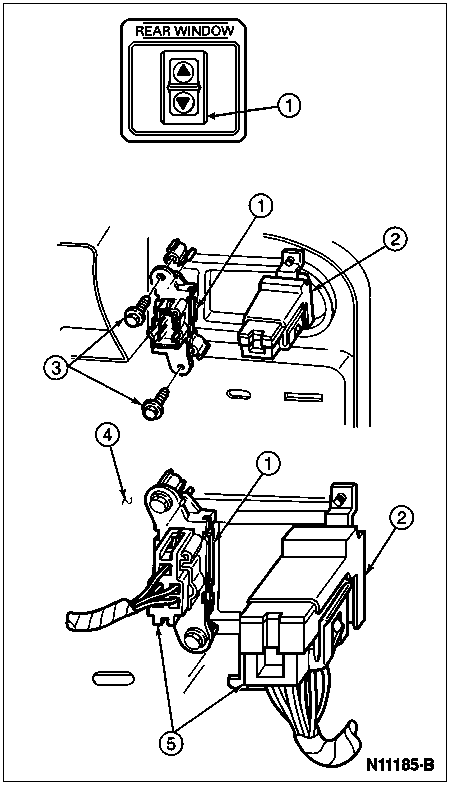

    ItemPart NumberDescription
    114529Window Regulator Control Switch, Tailgate
    211654Headlamp Switch
    3385754-S36Screw, Window Regulator Control Switch-to-Instrument Panel Finish Panel
    404320Instrument Panel
    514401Main Wiring
