Section 01-11: Glass, Frames and Mechanisms
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Window Regulator Control Switch



Removal

  1. Remove the screw holding the window regulator switch housing (14527) to the front door trim panel (23942).

  1. Insert a small, thin-bladed screwdriver and apply pressure to pry the window regulator switch housing out of front door trim panel.

  1. Remove three connector attaching screws from window regulator switch housing.

  1. NOTE: The window regulator control switch (14529) is held in place by the electrical contact pins.

    Remove window regulator control switch by carefully prying window regulator control switch from connector with a small screwdriver.



Installation

  1. NOTE: The window regulator control switch is keyed to the connector and can only be installed one way.

    Follow removal procedures in reverse order.

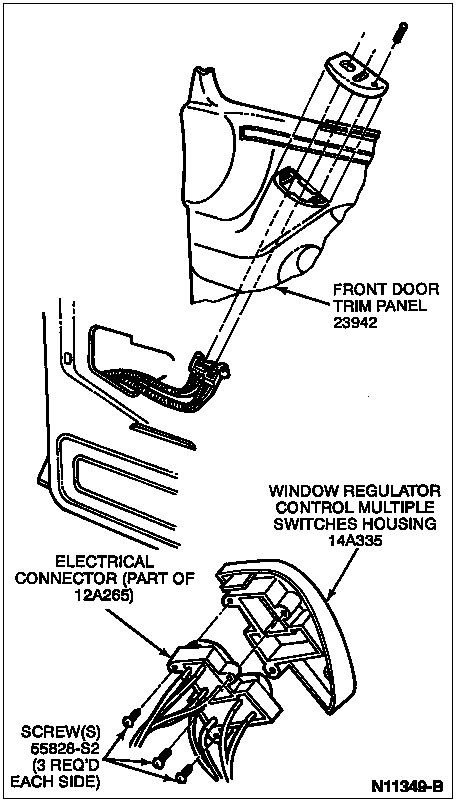

    Window Switch, F-Series and Bronco
