Sliding Back Window Glass Installation
Section 01-11: Glass, Frames and Mechanisms | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal
Remove interior trim and garnish mouldings necessary to access the sliding back window glass weatherstrip.
From vehicle interior, pull down the back window glass weatherstrip around the window opening.
With the help of an assistant to take hold of the sliding back window glass (42006), push the sliding back window glass out of the window opening from inside the cab.
Open back window glass (sliding).
From the top of the window frame, remove the screw retaining each division bar. Also, remove the two screws retaining the anchor plate in the window track. Remove the plate.
Spread the window frame and work the movable panes of the back window glass out of the track. Remove from the frame.
If a stationary pane of the back window glass is to be replaced, remove the division bar lower retaining screw. Remove the division bar.
Spread the window frame enough to remove the stationary pane from frame.
Installation
If a stationary pane of the back window glass is to be replaced, apply Silicone Lubricant C0AZ-19553-AA or equivalent meeting Ford specification ESR-M13P4-A to the weatherstrip of the back window glass and track. Spread the frame slightly and slide the stationary pane into frame.
Position the division bar into frame and install the lower retaining screw.
Spread the frame slightly and install the movable panes of the back window glass into track.
Install the division bar upper retaining screws.
Install a draw cord into the weatherstrip of the back window glass in the flange crevice, allowing the cord to overlap at the bottom center of the weatherstrip.

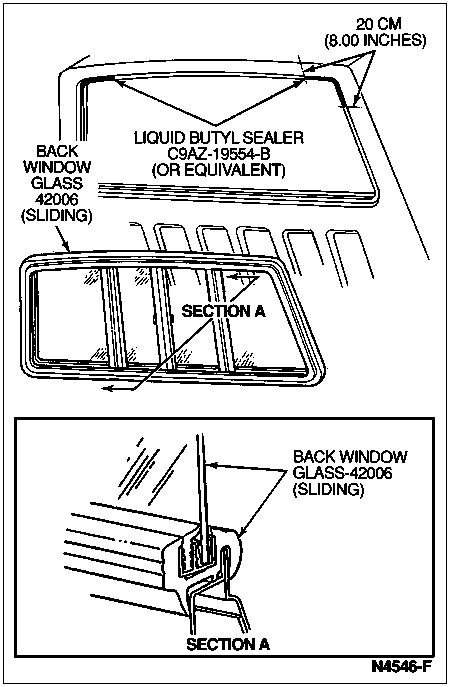

Apply 203mm (8 inches) of Liquid Butyl Sealer C9AZ-19554-B or equivalent meeting Ford specification ESB-M4G162-A between the two secondary sealing fins centered on each upper corner of the cab's back window glass opening.
Position the back window glass to the window opening.
With an assistant applying hand pressure from outside the cab, pull lip of the weatherstrip of the back window glass over the window opening flange with the draw cord.
Pull the weatherstrip of the back window glass over the lower flange, pulling one end of the draw cord at a time.
Pull the weatherstrip over the side flanges and upper flange.
Install any garnish mouldings and interior trim removed.
