Window Regulator, Manual, Front Door

Removal

1. Remove front door trim panel (23942) and front door trim shield (237A04), if equipped.

2. Support front door window glass in the full up position.

3. Remove center pin rivets attaching front door window regulator with drift punch.

4. NOTE: Be careful not to damage sheet metal holes during drilling.

   Drill head from each rivet using a 6.35mm (1/4-inch) drill and remove rivet.

5. Disengage window regulator arm roller from front door glass channel and retainer (21458) and remove the front door window regulator.

Installation

1. Position the front door window regulator in front door (20124) and insert window regulator arm roller into front door glass channel and regulator.

2. Position the front door window regulator to inner front door panel and install rivets using Rotunda Blind Fastener Installation Tool 107-R0600 or equivalent to attach the front door window regulator to front door inner panel. A 1/4 inch-20 x 1/2 inch screw and washer assembly and a 1/4 inch-20 nut and washer assembly may be used in place of the rivets if rivets are not available (equivalent metric retainers may also be used).

3. Check operation of window mechanism and install the front door trim shield, if equipped, and the front door trim panel.

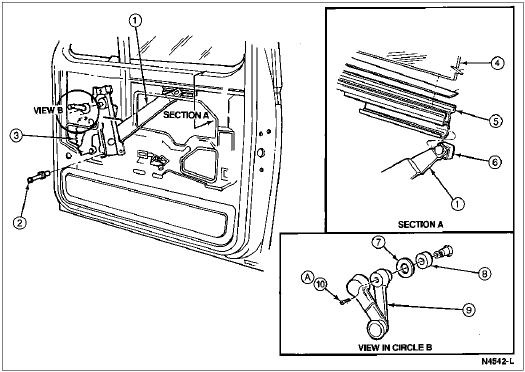

   Window Regulator, Manual, F-Series, Bronco







   Item	Part Number	Description
   1	—	Front Door Window Regulator Arm (Part of 23200)
   2	385189-S100	Rivet, Front Door Window Regulator-to-Front Door Inner Panel (3 Req'd)
   3	23200	Front Door Window Regulator
   4	21410	Front Door Window Glass
   5	21458	Front Door Glass Channel and Retainer
   6	23240	Window Regulator Arm Roller
   7	23370	Window Regulator Handle Plate
   8	23227	Window Regulator Handle Seal
   9	23342	Window Regulator Handle
   10	390337-S7	Screw, Window Regulator Handle
   A	—	Tighten to 4-5 Nm (35-44 Lb-In)
