Door Window Glass, Rear

Removal

1. Remove the rear door trim panel.

2. Lower the rear door window glass and remove the inside and outside rear door glass weatherstrips.

3. NOTE: Only one screw is shown in illustration.

   Remove one screw at the top and one at the bottom of the rear door glass front lower retainer.



   Rear Door Window, Crew Cab







   Item	Part Number	Description
   1	25712	Rear Door Window Glass
   2	25766	Rear Door Glass Run
   3	25596	Rear Door Glass Outside Weatherstrip
   4	24630	Rear Door
   5	26228	Rear Door Window Glass Channel
   6	23200	Front Door Window Regulator
   7	N800510-S100	Screw, Rear Door Glass Run Rear Lower Retainer-to-Rear Door
   8	N800510-S100	Screw, Rear Door Glass Run Front Lower Retainer-to-Rear Door
   9	25804	Rear Door Glass Run Rear Lower Retainer
   10	25796	Rear Door Glass Run Front Lower Retainer
   11	25860	Rear Door Glass Inside Weatherstrip
   12	23342	Window Regulator Handle
   13	23370	Window Regulator Handle Plate
   14	385189-S100	Rivet, Window Regulator-to-Rear Door (3 Req'd)
   15	23227	Window Regulator Handle Seal

4. Remove the rear door glass run front lower retainer by pulling up and twisting so that the retainer bracket clears the rear door window opening and the rear door glass run (25766) slides off.

5. Pull the rear door glass run out of the rear door window opening.

6. Raise the rear door window glass (25712) half-way and remove the rear door window regulator arm from the rear door window glass channel.

7. Lift the rear door window glass up and out of the rear door window opening.

Installation

1. Position the rear door window glass into the rear door window opening.

2. Insert the rear door window regulator arm into the rear door window glass channel.

3. Install the rear door glass run into the rear door.

4. Position the rear door glass run front lower retainer in the rear door.

5. Seat the rear door glass run in the rear door glass run front lower retainer.

6. NOTE: Only one screw is shown in illustration.

   Install the two rear door glass run front lower retainer-to-rear door screws.

7. Lower the rear door glass and install the inside and outside rear door glass weatherstrips.

8. Operate the rear door window glass and check for binding or looseness. Adjust the front and rear door glass run lower retainers as necessary.

9. Install the rear door trim panel.

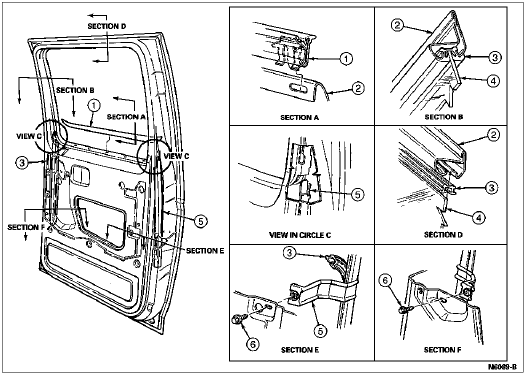

   Rear Door Window Weatherstrips and Retainers, Crew Cab







   Item	Part Number	Description
   1	25596	Rear Door Glass Outside Weatherstrip
   2	24630	Rear Door
   3	25766	Rear Door Glass Run
   4	25712	Rear Door Window Glass
   5	25804	Rear Door Glass Run Rear Lower Retainer
   6	N800510-S100	Screw and Washer Assembly
