Door Window Glass, Front

 WARNING: ALWAYS WEAR SAFETY GLASSES AND GLOVES WHEN HANDLING GLASS TO AVOID PERSONAL INJURY.

Removal

1. Remove the front door trim panel (23942) and front door trim shield (237A04). Refer to Section 01-05.

2. Remove screw from the front door vent window division bar.

3. Remove two screws attaching front door vent window weatherstrip retainer to the front edge of the front door (20124).

4. Lower the front door window glass and remove the inside and outside front door belt line weatherstrips.

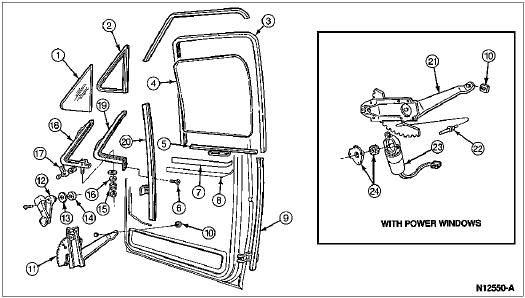

   Front Door Window Assemblies







   Item	Part Number	Description
   1	21402	Front Door Vent Window
   2	21448	Weatherstrip, Front Door Vent Window
   3	21596	Front Door Glass Top Run
   4	21410	Front Door Window Glass
   5	21458	Front Door Glass Channel and Retainer
   6	351909-S	Screw, Front Door Vent Window Frame-to-Front Door Vent Window Division Bar
   7	21452	Front Door Belt Line Outside Weatherstrip
   8	21456	Front Door Belt Line Inside Weatherstrip
   9	22A00	Front Door Glass Run Latch Side Retainer
   10	23240	Window Regulator Arm Roller
   11	23200	Front Door Window Regulator
   12	23342	Window Regulator Handle
   13	23370	Window Regulator Handle Plate
   14	23227	Window Regulator Handle Seal
   15	22926	Pivot Spring, Front Door Vent Window
   16	22963	Pivot Washer, Front Door Vent Window
   17	22916	Front Door Vent Window Handle
   18	21608	Frame, Front Door Vent Window
   19	21408	Weatherstrip Retainer, Front Door Vent Window
   20	22296	Division Bar, Front Door Vent Window
   21	23208	Front Door Power Window Regulator Minus Motor
   22	385189-S	Rivet
   23	23394	Window Regulator Electric Drive
   24	234A24	Window Regulator Drive Gear Kit

5. Pull the front door glass top run (21596) out of the front door window opening near the front door vent window division bar enough to allow removal of the front door vent window glass and frame assembly.

6. Tilt the front door vent window glass and frame assembly and front door vent window division bar toward the rear of the front door and remove the front door vent window glass and frame assembly from the front door.

7. Remove the window regulator arm roller from the front door glass channel and retainer.

8. Rotate the front edge of the front door window glass downward and lift it and the attached front door glass channel and retainer from the front door.

Installation

1. Position the front door window glass (21410) and front door glass channel and retainer assembly into the front door.

2. Insert the window regulator arm roller into the front door glass channel and retainer (21458).

3. Position the front door vent window and frame assembly into the front door and tilt the front door vent window division bar upright.

4. Insert the front edge of the front door window glass into the front door vent window division bar.

5. Seat the front door window channel seal into the front door window opening.

6. Install the inside and outside front door belt line weatherstrips into the front door window opening.

7. Install the two front door vent window frame-to-front door screws.

8. Install the front door vent window frame-to-front door vent window division bar screw.

9. Install the front door trim panel. Refer to Section 01-05.

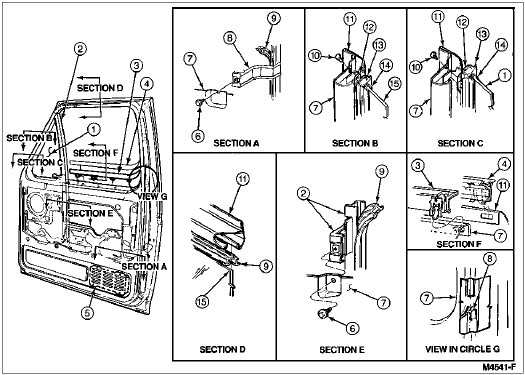

   Door Window Glass, Front, F-Series and Bronco







   Item	Part Number	Description
   1	21402	Front Door Vent Window
   2	22296	Division Bar, Front Door Vent Window
   3	21456	Front Door Belt Line Inside Weatherstrip
   4	21452	Front Door Belt Line Outside Weatherstrip
   5	20982	Door Vent Valve Assembly
   6	N800510-S100	Screw, Inside Door Panel-to-Front Door Glass Run Latch Side Retainer
   7	—	Inside Door Panel (Part of 20124)
   8	222A00	Front Door Glass Run Latch Side Retainer
   9	21596	Front Door Glass Top Run
   10	N808742-S301	Screw, Front Door Vent Window Weatherstrip Retainer-to-Front Door
   11	—	Outside Door Panel (Part of 20124)
   12	21408	Weatherstrip Retainer, Front Door Vent Window
   13	21448	Weatherstrip, Front Door Vent Window
   14	21608	Frame, Front Door Vent Window
   15	21410	Front Door Window Glass
