Section 01-10: Seats and Tracks
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
ADJUSTMENTS

Seat Back, Front Split Back Latch Adjustment, SuperCab and Bronco

  1. Unclip J-strap on the seat back cover.

  1. Reach in between the foam and frame to locate the bowden cable adjuster.

  1. Turn the adjuster to create a maximum gap of 2.5mm (0.10 inch) between the latch pawl and striker.

  1. Replace cover; refasten J-straps on the front seat back cover (64416).

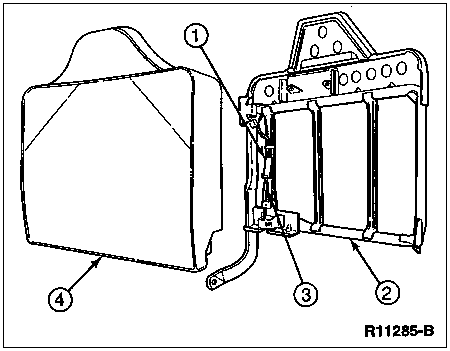

    Front Seat Back, Frame and Pad





    ItemPart NumberDescription
    1—Adjuster — Bowden Cable (Part of 617K45)
    261018Front Seat Back Frame
    3617K45Bowden Cable
    464810Front Seat Back
