Section 01-10: Seats and Tracks | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal
Remove seat support bolt insulator and seat assembly from vehicle.
Remove front seat tracks (61704) from front seat cushion frame and spring (63100).
Remove front seat cushion cover (62900) as necessary to gain access to front seat back pad adjusting pump screws.
Remove mounting screws, disconnect front seat back pad adjusting hose (65528) and electrical connector and remove front seat back pad adjusting pump (65530).
Installation
Follow removal procedures in reverse order.

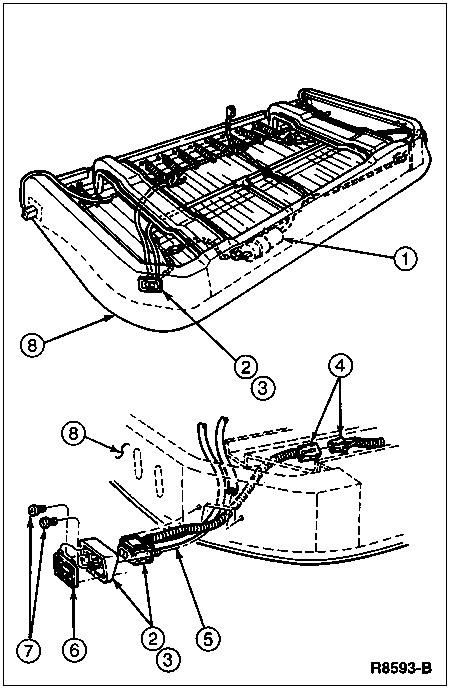

| Item | Part Number | Description |
|---|---|---|
| 1 | 65530 | Front Seat Back Pad Adjusting Pump |
| 2 | 14B722 | Seat Back Control Switch (RH) |
| 3 | 14C723 | Seat Back Control Switch (LH) |
| 4 | — | Electrical Switch Connector (Part of 14401) |
| 5 | 65528 | Front Seat Back Pad Adjusting Hose |
| 6 | 14C713 | Seat Back Control Switch Bezel |
| 7 | N610130-S58 | Screw(s) (2 Req'd) |
| 8 | 63100 | Front Seat Cushion Frame and Spring |
