Section 01-10: Seats and Tracks
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Latch, Front

Removal

  1. Remove two screws securing front seat back latch lower cover (62768) to latch assembly. Pull front seat back latch lower cover free from seat assembly at opposite end.

  1. Remove two bolts securing front seat back latch (62648) to seat. Remove latch.



Installation

  1. Position front seat back latch to seat and secure with two bolts.

  1. Install front seat back latch lower cover to seat assembly. Install two screws securing front seat back latch lower cover to latch assembly.

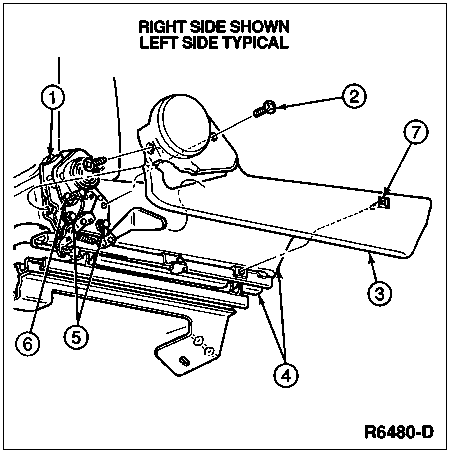

    ItemPart NumberDescription
    162648Front Seat Back Latch
    251764-S58Screw (2 Req'd)
    362768Front Seat Back Latch Lower Cover
    463100Front Seat Cushion Frame and Spring
    5—Bolt and Washer
    (Part of 62648)
    662638Front Seat Back Latch Striker
    7—Screw (Part of 18617D00)
