Section 01-10: Seats and Tracks
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Latch, Front Bucket, Bronco

Removal

  1. Remove front seat back cover (64416).

  1. Remove the upper two screws securing front seat back latch (62648) to front seat back frame (61018).

  1. Remove the two lower screws securing front seat back latch to front seat cushion frame and spring (63100).

  1. Remove front seat back latch.



Installation

  1. Follow removal procedures in reverse order.

  1. Tighten lower screws on front seat back latch to 23-32 Nm (17-24 lb-ft). Tighten upper screws attaching front seat back frame to front seat back latch to 23-32 Nm (17-24 lb-ft).

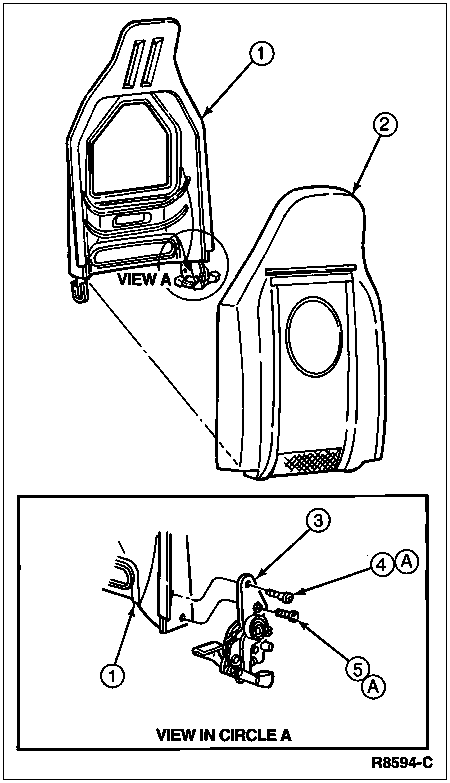

ItemPart NumberDescription
161018Front Seat Back Frame
264810Front Seat Back
362648Front Seat Back Latch
4N805885-S58Screw
5N803143-S58Screw
A—Tighten to 23-32 Nm
(17-24 Lb-Ft)
