Latch, Bench Seat, F-150, F-250, F-350, F-Super Duty Chassis Cab, Crew Cab

Removal

1. Remove attaching screws and front seat back cover (64416) from lower side of front seat back frame (61018) (both sides).

2. Remove two bolts attaching latch to front seat back frame.

3. Remove seat latch.

Installation

1. Follow removal procedures in reverse order. Springs (one each side) must rest against the bottom of the front seat back frame and hook over the pawls on each end of the latch.

2. Tighten upper bolt to 30-40 Nm (22-30 lb-ft) and the lower bolt to 27-43 Nm (20-32 lb-ft).

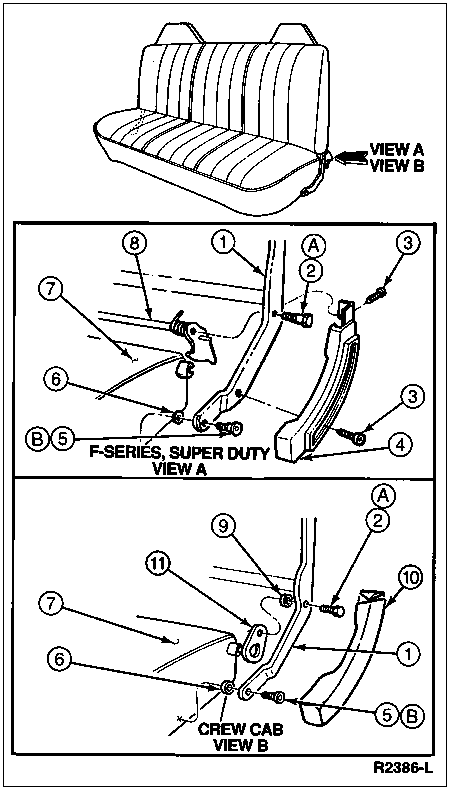

   Item	Part Number	Description
   1	64810	Front Seat Back
   2	388887-S58	Bolt
   3	N610017-S2	Screw(s)
   4	62768	Front Seat Back Latch Lower Cover
   5	385329-S58	Bolt
   6	385208-S100	Washer
   7	63100	Front Seat Cushion Frame and Spring
   8	62648	Front Seat Back Latch
   9	386369-S	Spacer
   10	3561684	Cover, Front Seat Back Pivot Side
   11	617C04	Front Seat Back Pivot Lockout
   A	—	Tighten to 30-40 Nm (22-30 Lb-Ft)
   B	—	Tighten to 27-43 Nm (20-32 Lb-Ft)
