CAUTION: Use care when handling seat and track assembly. Dropping assembly or sitting on seat when not secured in vehicle could damage seat track components.
Remove the seat track-to-seat cushion screws and remove the tracks from the cushion.
Section 01-10: Seats and Tracks | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal
Remove the bench seat as described in Seat, Rear, Bench, F-350 Crew Cab in the Removal and Installation portion of this section.
Disconnect the small tension spring from the left seat track and the tie rod.
Disconnect the seat track latch tie rod from the latches on the seat tracks.
CAUTION: Use care when handling seat and track assembly. Dropping assembly or sitting on seat when not secured in vehicle could damage seat track components.
Remove the seat track-to-seat cushion screws and remove the tracks from the cushion.
Installation
Follow removal procedure in reverse order.
Lubricate the seat track assemblies using Multi-Purpose Grease D0AZ-19584-AA or equivalent meeting Ford specifications ESR-M1C159-A and ESB-M1C93-A.
Tighten track-to-floorpan screws to 26-34 Nm (19-25 lb-ft).

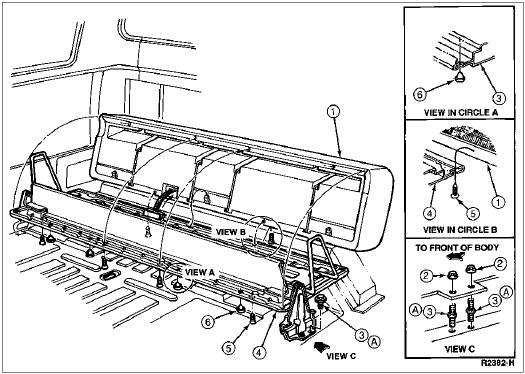

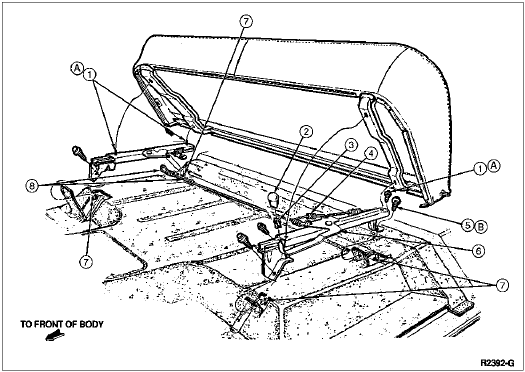

| Item | Part Number | Description |
|---|---|---|
| 1 | 63160 | Rear Seat Cushion Frame and Rear Seat Frame |
| 2 | N621942-S58 | Nut (4 Req'd) |
| 3 | N806966-S411 | Stud (4 Req'd) |
| 4 | 60544-A | Panel and Support Assembly |
| 5 | N800485-S58 | Screw and Washer (8 Req'd) |
| 6 | N380004-S | Bumper (4 Req'd) |
| A | — | Tighten to 26-34 Nm (19-25 Lb-Ft) |
| Item | Part Number | Description |
|---|---|---|
| 1 | 384871-S2 | Screw |
| 2 | 61755-A | Handle |
| 3 | 618B58 | Front Seat Track Adjusting Handle Retainer |
| 4 | 62600 | Spring |
| 5 | N606703-S2 | Screw |
| 6 | 61704 | Front Seat Track |
| 7 | D6AZ-19560-A | Caulking Cord |
| 8 | 61802-A | Tie Rod for Front Seat Track |
| A | — | Tighten to 17-27 Nm (13-20 Lb-Ft) |
| B | — | Tighten to 26-34 Nm (19-25 Lb-Ft) |
