CAUTION: Use care when handling front seat (60012) and front seat tracks (61704). Dropping assembly or sitting on seat when not secured in vehicle could result in damaged components.Section 01-10: Seats and Tracks | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal
CAUTION: Use care when handling front seat (60012) and front seat tracks (61704). Dropping assembly or sitting on seat when not secured in vehicle could result in damaged components.
Remove bench seat as described in Seat Assembly, 40/20/40 Bench in Removal and Installation portion of this section.
Disconnect seat track latch tie rod from front seat tracks on front seat back latches (62648).
Remove screws attaching front seat back latches to front seat cushion frame and spring (63100).
Remove front seat tracks from front seat cushion frame and spring.
Installation
Follow removal procedures in reverse order.
Tighten screws to 18-27 Nm (13-20 lb-ft).

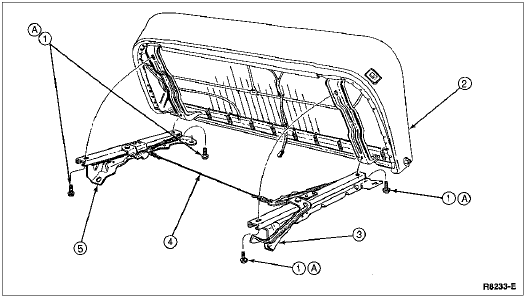

| Item | Part Number | Description |
|---|---|---|
| 1 | 384871-S58 | Screw |
| 2 | 632A22 | Front Seat Cushion Pad |
| 3 | 61704 | Front Seat Track (RH) |
| 4 | 61802 | Rod Assembly |
| 5 | 61704 | Front Seat Track (LH) |
| A | — | Tighten to 18-27 Nm (13-20 Lb-Ft) |
