Forward-Facing Rear Seat, SuperCab
Section 01-10: Seats and Tracks | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal
Release rear seat back latch striker (62440) and put the rear seat back frame (613A38) in the fold-down position.
Remove safety belts. Refer to Section 01-20A.
Remove the screw and washer assemblies attaching rear seat back cover (66600) to rear seat back frame.
Lift up rear seat back cover and remove rear seat back cover.
Remove panel and support assembly-to-floor screws and washers.
Pull rear seat back release latch (61382) and remove rear seat cushion frame (63160) and rear seat cushion cover (63804).
If removing rear seat back release latch, remove four attaching screws and remove the rear seat back release latch. Screws run through panel and support assembly and into rear seat back release latch.
Move rear seat cushion pad (63840) so bottom panel is toward you.
Remove screws to panel and support assembly.
Feed strap to rear seat back release latch through rear seat cushion pad and rear seat cushion cover.
Remove rear seat cushion pad and rear seat cushion cover.
Installation
Follow the removal procedures in reverse order.
Rear seat latching effort is 4-25 pounds static force applied adjacent striker.

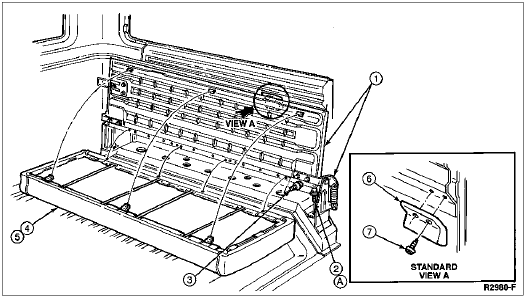

Forward-Facing Rear Seat, SuperCab
| Item | Part Number | Description |
|---|---|---|
| 1 | 60518 | Rear Seat Back to Floor Panel and Support Assembly |
| 2 | N606701-S2 | Bolt and Washer Assembly |
| 3 | N800351-S2 | Screw and Washer Assembly |
| 4 | 66800 | Rear Seat Back Pad |
| 5 | 63160 | Rear Seat Cushion Frame |
| 6 | 624A16 | Rear Seat Back Bumper Assembly (LH Only) |
| 7 | 382413-S2 | Screws (2 Req'd) |
| A | — | Tighten to 25-44 Nm (19-32 Lb-Ft) |
