Section 01-10: Seats and Tracks
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Captain Chairs, Front



Removal

  1. Remove bolts attaching front seat support (60094) to front floor pan (11135).

  1. Lift seat and front seat tracks (61704) from vehicle.



Installation

  1. Position seat and front seat tracks onto front floor pan and secure bolts.

  1. Apply Caulking Cord D6AZ-19560-A or equivalent meeting Ford specification ESB-M4G32-A around driver seat support assembly attaching bolt locations on front floor pan. Tighten bolts to 47-63 Nm (35-46 lb-ft).

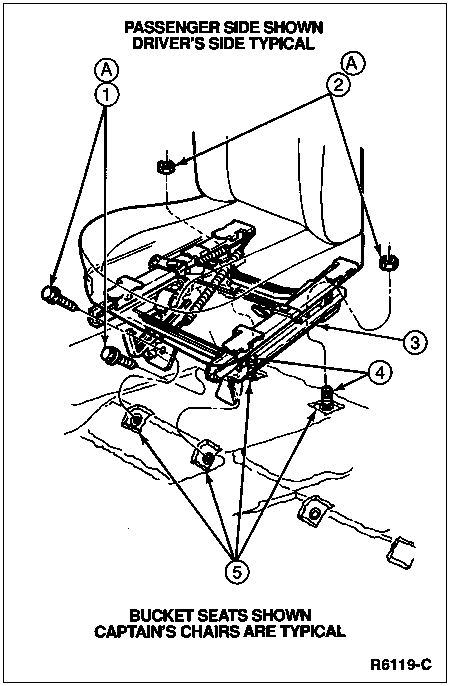

    ItemPart NumberDescription
    1N8066965-S2Screw and Washer Assembly
    2N621942-S411Nut (2 Req'd)
    360094Front Seat Support
    4N806966-S411Stud (2 Req'd)
    5D6AZ-19560-ACaulking Cord (ESB-M4G32-A)
    A—Tighten to 47-63 Nm
    (35-46 Lb-Ft)
