Section 01-09: Mirrors, Rearview
1996 F-150, F-250, F-350 and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Mirror, Recreation Swing-Out, Dual Position

Removal

  1. NOTE: If outside rear view mirror head (17723) is broken, replace outside rear view mirror (17682). Do not attempt to replace outside rear view mirror glass (17K707).

    Remove five screws from front door (20124).

  1. Remove outside rear view mirror.



Installation

  1. Position outside rear view mirror to door.

  1. Install five retaining screws and secure mirror to door.

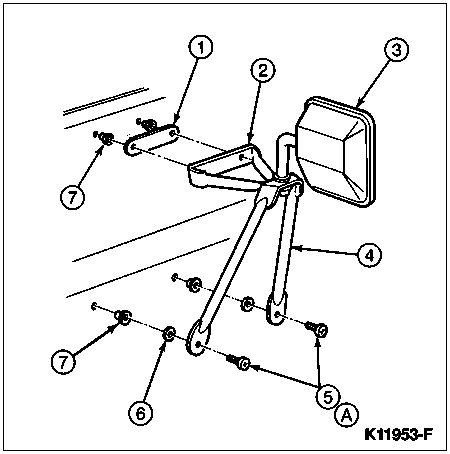

ItemPart NumberDescription
117724Outside Rear View Mirror Gasket — Upper
217016Bracket Assembly
317723Outside Rear View Mirror Head
417059Bracket Assembly
5N806345-S47Screw(s) (4 Req'd)
617724Outside Rear View Mirror Gasket — Lower
7N803763-S36Rivet-Nut (4 Req'd)
A—Tighten to 4-8 Nm
(35-71 Lb-In)
