Section 01-09: Mirrors, Rearview
1996 F-150, F-250, F-350 and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Mirror, Manual, Outside Rearview, Western Type, Swing-Away

Removal

  1. NOTE: If outside rear view mirror head (17723) is broken, replace outside rear view mirror (17682). Do not attempt to replace outside rear view mirror glass (17K707).

    Remove mirror attaching screws to door.

  1. Remove mirror.



Installation

  1. Position mirror to vehicle door.

  1. Install attaching screws and secure mirror to door.

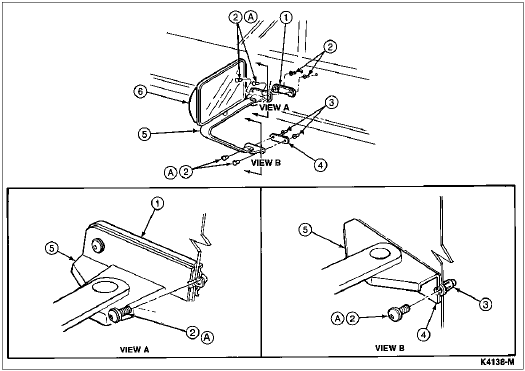

Mirror, Western Type, Swing-Away





ItemPart NumberDescription
117724Outside Rear View Mirror Gasket (Upper)
2N806345-S47Screw(s)
3N803763-S36Riv-Nuts
417724Outside Rear View Mirror Gasket (Lower)
517682Outside Rear View Mirror
617723Outside Rear View Mirror Head
A—Tighten to 4-12 Nm
(35-106 Lb-In)
