Splash Shield, Rear, Styleside and Bronco

Removal

1. Raise vehicle and remove wheel and tire. Refer to Section 04-04.

2. Remove three screws attaching splash shield to fender.

3. Remove one screw and washer attaching lower splash shield to fender.

4. Remove splash shield.

Installation

1. Follow removal procedures in reverse order.

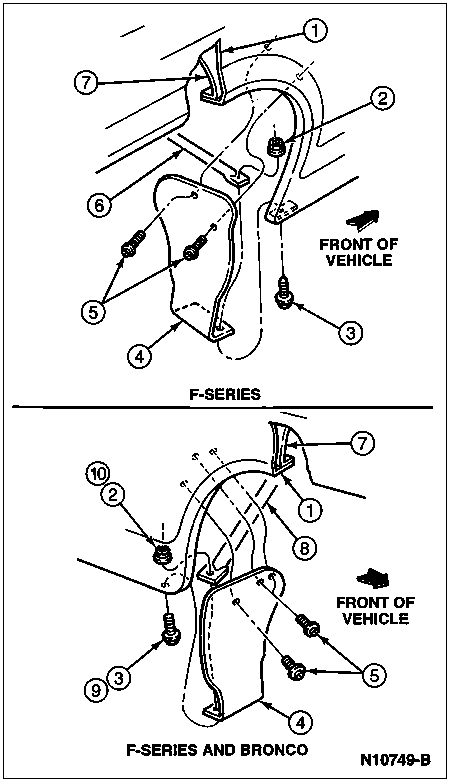

   Item	Part Number	Description
   1	8237840	Body Side Outer Panel
   2	376838-S2	Nut and Washer (1 Req'd Each Side — F-Series Only)
   3	57041-S2	Screw and Washer (1 Req'd Each Shield — F-Series Only)
   4	28370	Rear Wheel Splash Shield (2 Req'd Each Side)
   5	381801-S55X	Screw (2 Req'd Each Shield)
   6	—	Body Side Panel Front Brace (F-Series) (Part of 992860)
   7	9928370	Shield Assembly, Rear Wheel Splash
   8	—	Body Side Panel Rear Brace (F-Series) (Part of 9927726)
   9	N606676-S36	Screw and Washer (1 Req'd Each Shield — Bronco)
   10	N621906-S36	Nut and Washer (1 Req'd Each Shield — Bronco)
