Trim, Exterior

If it is necessary to remove an interior trim panel in order to remove the exterior trim or emblems, then first determine the type of retainer used before removing. Super Cab models use conventional exterior mouldings except in the area of the cab extension. If a weld stud is distorted or broken off, it should be replaced with a drill point screw 3795560.

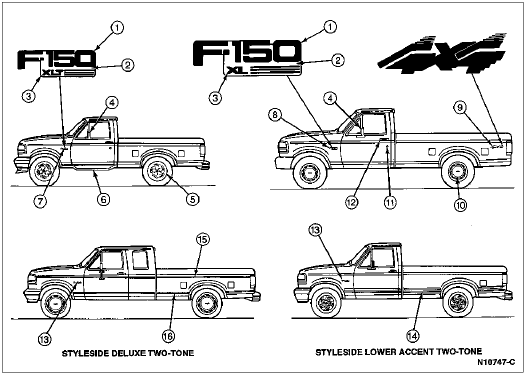

Exterior Trim, F-Series

Item	Part Number	Description
1	17682	Bright (Part of 16098)
2	17682	Black (Part of 16098)
3	17682	Blue XL (Part of 16098)
4	17682	Outside Rear View Mirror (Black with/XL, Bright with/XLT)
5	1007	Wheel (Cast Aluminum)
6	16A470	Cab Step
7	16098	F-150 XLT Plate
8	16098	Series XL Plate
9	20000	Body Side Lower Stripe Kit (4 x 4 Only)
10	1130	Wheel Cover (Bright)
11	21985	Door Lock Cylinder (Bright)
12	22404	Door Handle (Bright)
13	16098	Model ID Plate
14	20000	Body Side Lower Stripe Kit
15	20000	Body Side Lower Stripe Kit
16	20000	Body Side Lower Stripe Kit

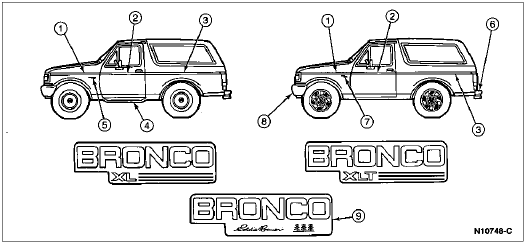

Exterior Trim, Bronco

Item	Part Number	Description
1	—	Front Fender Moulding (Part of 21048)
2	—	Door Moulding (Part of 21048)
3	—	Body Side Moulding (Part of 21048)
4	16A470	Cab Step
5	16098	Model ID Plate (XL/Eddie Bauer)
6	17B807	Rear Bumper Moulding
7	16098	Model ID Plate (XLT/Eddie Bauer)
8	17C829	Front Bumper Rubber Moulding
9	16098	Model ID Plate/Eddie Bauer (With Two-Tone Paint)

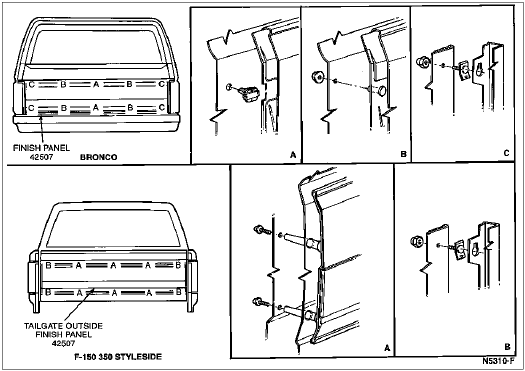

Tailgate Outside Finish Panel

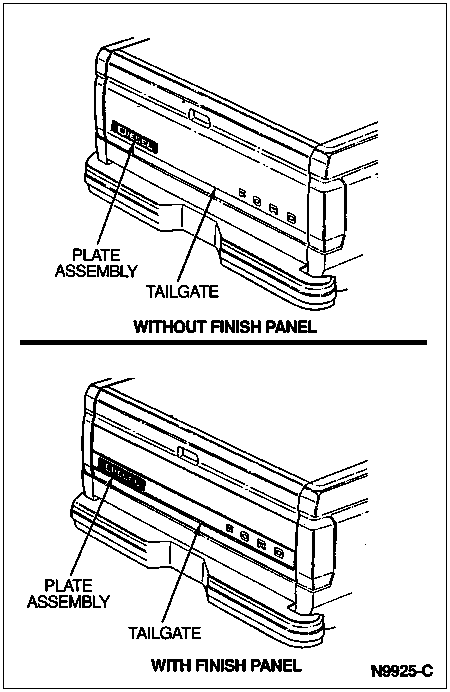

Exterior Trim, Diesel Nameplate, F-250, F-350

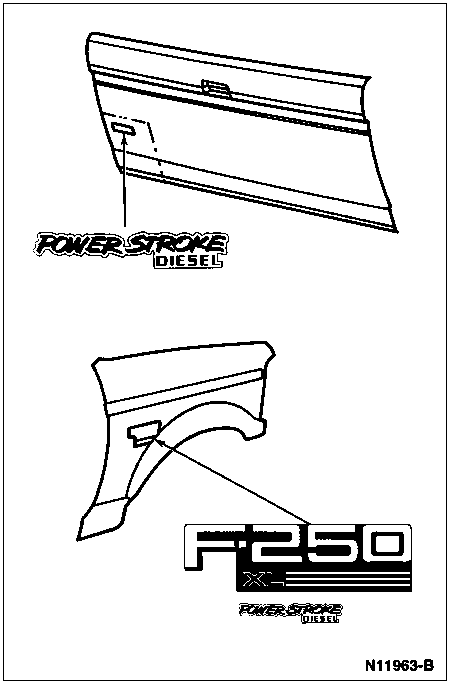

Emblem, 7.3L Diesel Engine
