Vent Panel, Cowl Top

Removal

1. Open and support hood (16612).

2. Remove windshield wiper pivot arm (17526). Refer to Section 01-16.

3. Remove six screws attaching cowl top vent panel (022A68) to cowl top outer panel (02012).

4. From under the hood, remove screws attaching cowl top panel seal (02824) to cowl top outer panel.

5. Remove cowl top vent panel.

6. If removing cowl top panel seal, remove attaching screws to cowl top vent panel.

Installation

1. NOTE: When installing cowl top vent panel, make sure notches are inboard of vehicle. Install Foam Tape ESB-M3G102-A to outer edge of cowl top vent panel prior to installation. Tighten screws attaching cowl top vent panel to cowl top outer panel to 1.4-2.0 Nm (13-18 lb-in).

   Follow removal procedure in reverse order.

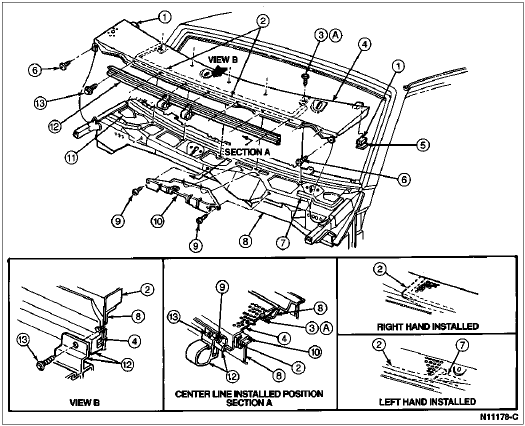

   Cowl Top Vent Panel







   Item	Part Number	Description
   1	ESB-M3G102-A	Foam Tape
   2	022A70	Cowl Top Seal
   3	56903-S55	Screw (5 Req'd)
   4	022A68	Cowl Top Vent with Radio Antenna Holes
   5	022A56	Cowl Top Vent Grille Spacer (1 Req'd Each Side)
   6	56910-S2	Screw (2 Req'd)
   7	02919	Cowl Top Panel-to-Hood Seal
   8	02012	Cowl Top Outer Panel
   9	55927-S2	Screw (4 Req'd)
   10	022A48	Cowl Top Outer Panel Extension Reinforcement Assembly
   11	020A50	Cowl Top Panel Access Hole Cover (1 Req'd RH Side)
   12	02824	Cowl Top Panel-to-Hood Seal Assembly
   13	56902-S55-X	Screw (7 Req'd)
   A	—	Tighten to 1.4-2.0 Nm (13-18 Lb-Ft)
