Door, Headlamp

Removal

1. Remove two screws and nuts retaining headlamp door (13064) to radiator grille opening panel reinforcement (8A284).

2. Pull headlamp door from vehicle.

3. Remove three bulbs and sockets from headlamp door.

4. Remove headlamp door.

Installation

1. Follow removal procedures in reverse order.

2. Tighten screws to 1.4-2.3 Nm (13-20 lb-in).

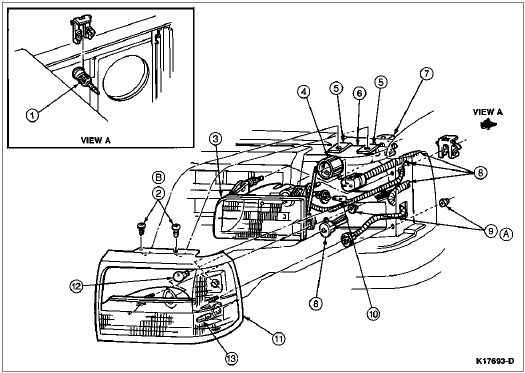

   Headlamp Door







   Item	Part Number	Description
   1	—	Adjusting Screw Assembly (Part of 13005)
   2	N801603-S61	Screw (2 Req'd Each Side)
   3	13008	Headlamp
   4	13N019	Headlamp Bulb Retainer
   5	N806851-S100	J-Nuts (2 Req'd)
   6	8A284	Radiator Grille Opening Panel Reinforcement
   7	13N020	Headlamp Retainer Clip
   8	12A581	Wiring Assembly
   9	N621906-S55M	Nut and Washer (2 Req'd)
   10	13465	Bulb No. 916 NA
   11	13064	Headlamp Door
   12	13465	Bulb No. 3157
   13	13465	Bulb No. 916
   A	—	Tighten to 4-7 Nm (36-61 Lb-In)
   B	—	Tighten to 1.4-2.3 Nm (13-20 Lb-In)
