Section 01-05: Trim, Interior
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Carpet, Floor

Removal

  1. Remove the seat(s). Refer to Section 01-10.

  1. If equipped with manual transmission, remove gearshift lever boot bezel (7E391).

  1. Grasp floor carpet (13000) beneath floor shifter boot and pull outward and upward away from boot.

  1. Remove console panel (045A36). Refer to Section 01-12.

  1. Remove screws retaining right and left cowl side trim panels.

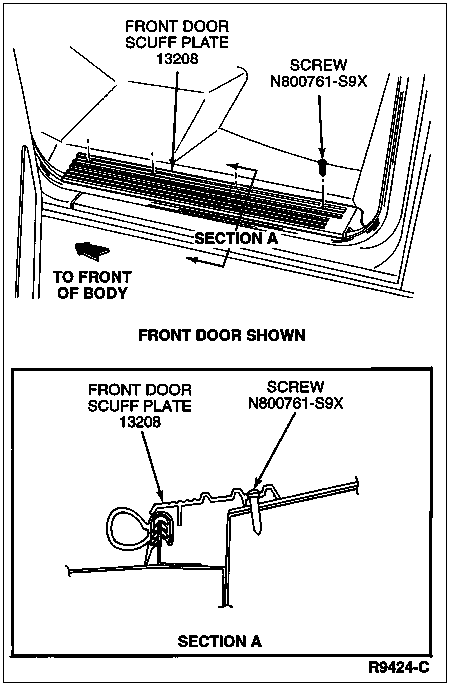

  1. Remove screws retaining front door scuff plates (13208). Remove front door scuff plates.

  1. Remove screws retaining tailgate scuff plate (Bronco) and remove scuff plate.

  1. Remove cowl side trim panels.

  1. Remove screws retaining floor carpet.

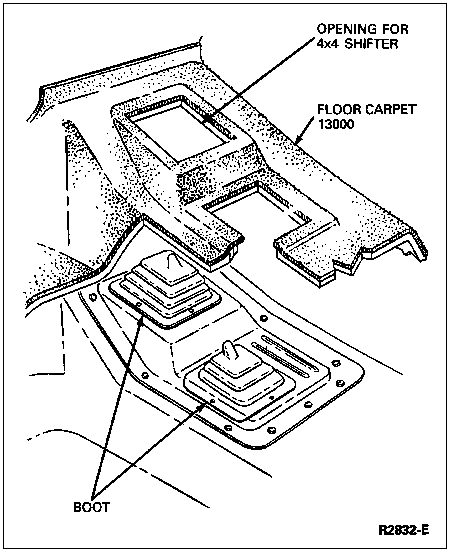

  1. NOTE: Use old floor carpet as a template to cut hole for shifter(s), if floor carpet is being replaced.

    Remove floor carpet.

Installation

  1. Follow the removal procedures in reverse order.

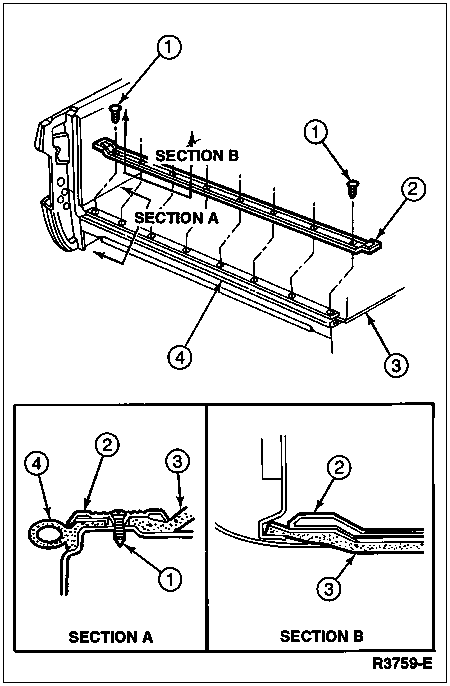

    Scuff Plate, Tailgate, Bronco





    ItemPart NumberDescription
    1N800942-S9XScrew (8 Req'd)
    242624Tailgate Scuff Plate
    313000Floor Carpet
    441608Tailgate Weatherstrip

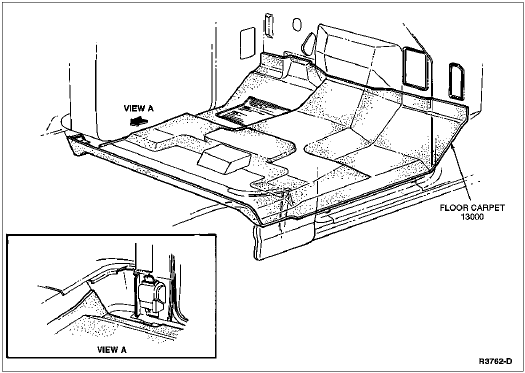

    Floor Carpet, Bronco, Typical View

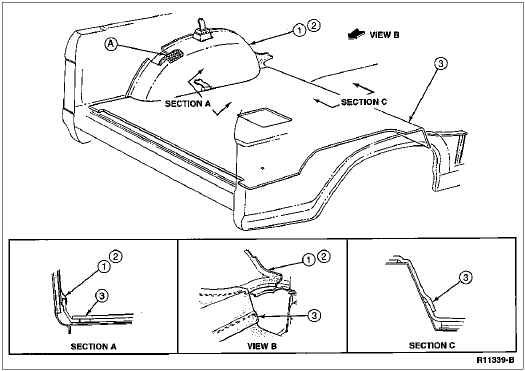

    Bronco, Rear





    ItemPart NumberDescription
    1131016Wheelhouse Cover Assembly (Carpet)
    245466Wheelhouse Cover Assembly (Mat)
    313182Rear Floor Carpet
    A—Adhesive

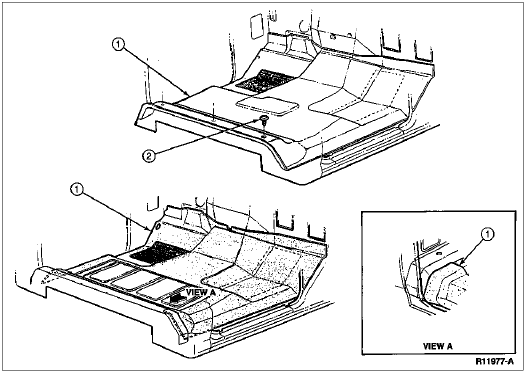

    Floor Mat, Carpet Assembly, F-150, F-250, F-350 Regular Cab





    ItemPart NumberDescription
    113000Floor Mat, Carpet Assembly
    2N802734-SSWPushpin

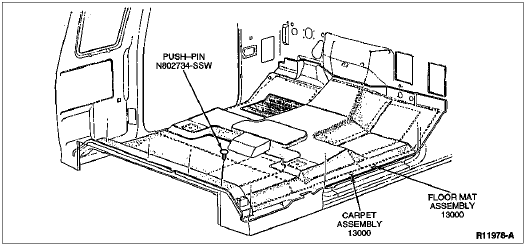

    Floor Mat, Carpet Assembly, SuperCab
