Section 01-05: Trim, Interior
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Headlining, Roof

Removal

  1. Remove the three screws retaining each visor to the roof. Remove visors.

  1. Remove the screws retaining the garnish mouldings. Remove mouldings.

  1. Remove roof console, if equipped. Refer to Section 01-12.

  1. Remove two drive pins retaining the headliner to roof structure. Remove headliner.

Installation

  1. Follow removal procedures in reverse order.

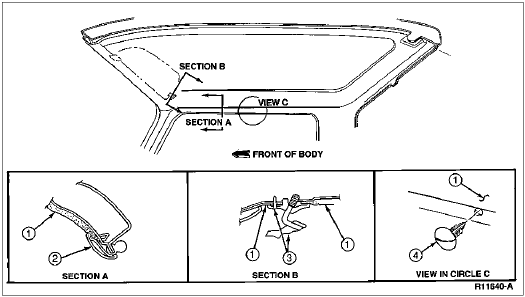

Roof Headliner, F-Series





ItemPart NumberDescription
151944Roof Trim Panel
251700Roof Side Moulding
304132Visor Arm and Bracket
4388577-SPushpin (1 Req'd)

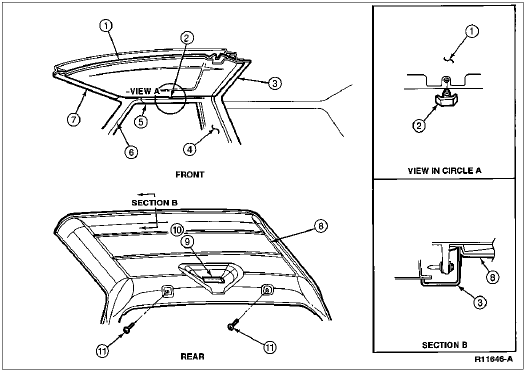

Roof Headliner, Bronco





ItemPart NumberDescription
151944Roof Trim Panel
2383927-SDrive Pin (1 Req'd Each Side)
342410Moulding
431012Quarter Trim Panel
529010Body Side Garnish Moulding
63598Front Body Pillar Inside Moulding
703606Windshield Garnish Moulding
8519C14Roof Trim Panel, Rear
913K706Rear Cargo Lamp
1013K707Rear Courtesy Lamp Lens
1102354Cowl Side Trim Panel Retainer (2 Req'd)

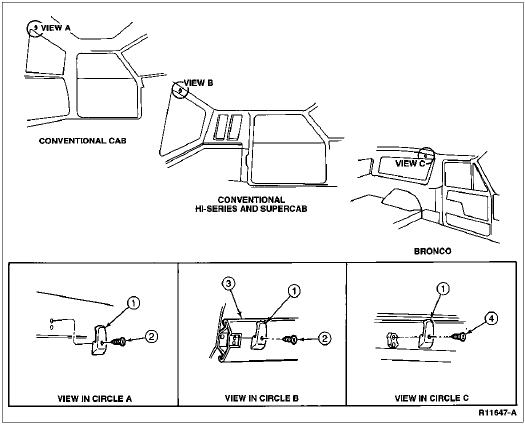

Coat Hooks





ItemPart NumberDescription
129024Coat Hook Cover
2N610022-S424Screw (Regular Cab)
342410Moulding
4N610021-S424Screw (Bronco)
