Trim Panel, Aft Seat

Refer to the following illustrations for removal and installation.

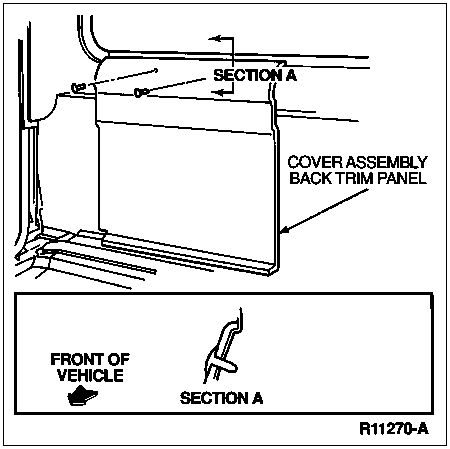

Trim Panel, Back, F-Series

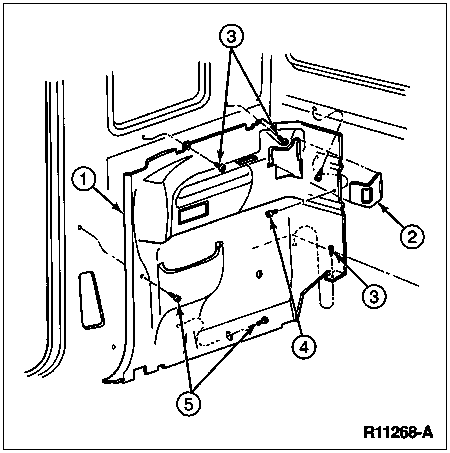

Trim Panel, Body Side, F-Series, SuperCab

Item	Part Number	Description
1	278012	Panel Assembly, Body Rear Cover Trim
2	61348	Cover, Rear Seat Back Latch
3	381801-S58	Screw (4 Req'd Each Side)
4	56928-S58	Screw (1 Req'd Each Side)
5	N800942-S58	Screw (2 Req'd Each Side)

Trim Panels, Rear, F-Series

Item	Part Number	Description
1	N803247-S58	Screw, Oval Head (4 Req'd Each Side)
2	N800942-S58	Screw and Washer (1 Req'd Each Side)
3	60230	Front Seat Shoulder Strap Opening Cover
4	381801-S58	Screw, Round Washer Head (1 Req'd Each Side)
5	278D12	Rear Corner Trim Panel
6	601A42	Radio Speaker Grille

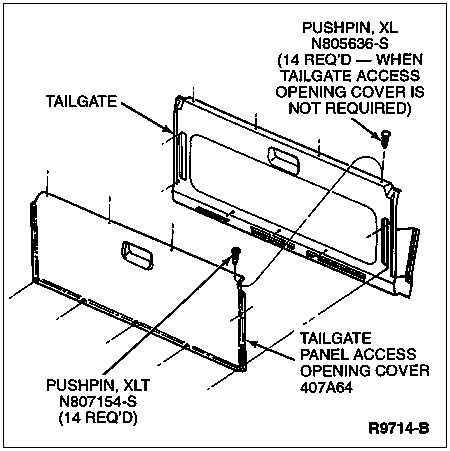

Trim Panel, Tailgate, Bronco

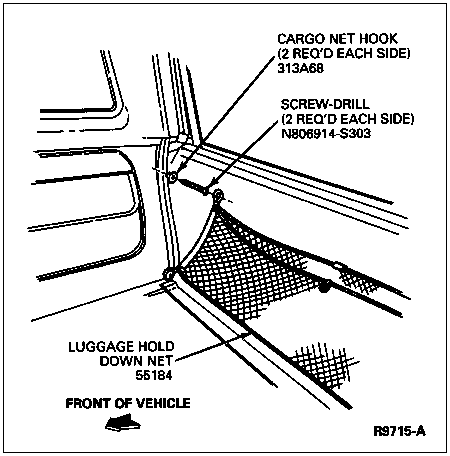

Luggage Hold-Down Net, Bronco

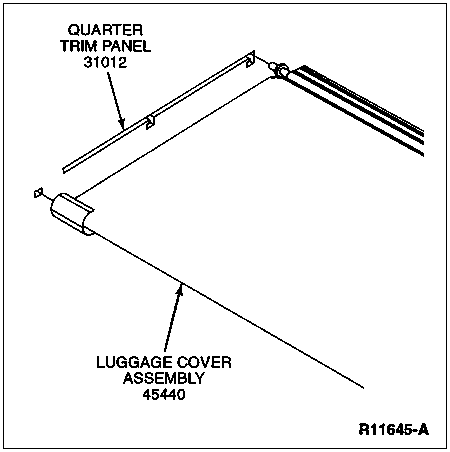

Luggage Cover, Bronco
