Trim Panel, Body Side, Lo-Series, Bronco
Section 01-05: Trim, Interior | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
NOTE: When removing panels retained by pushpins, use Rotunda Windshield and Moulding/Trim Removal Kit 107-R0401 or equivalent to carefully pry trim panel from inner panel. Replace any bent, damaged or missing pushpins.
Refer to the following illustrations for removal and installation of trim panels.
Trim Panel, Body Side, Lo-Series, Bronco
| Item | Part Number | Description |
|---|---|---|

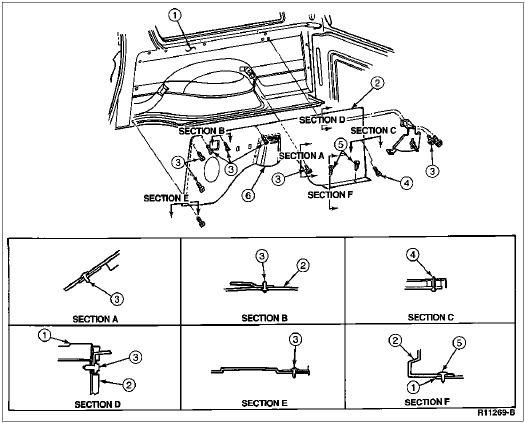

| 1 | — | Panel Assembly, Body Side Inner (Part of 27864) |
| 2 | 31012 | Quarter Trim Panel |
| 3 | 381801-S58 | Screw |
| 4 | 385402-S58X | Screw |
| 5 | 381801-S58X | Screw |
| 6 | 601B32 | Cover, Rear Seat Shoulder Strap Retractor |
| Item | Part Number | Description |
|---|---|---|

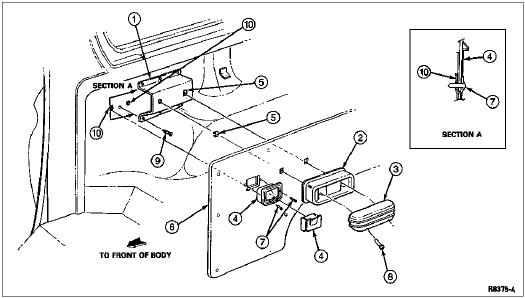

| 1 | 31608 | Armrest Support |
| 2 | 31604 | Armrest Base |
| 3 | 24100 | Front Arm Rest Pad |
| 4 | 62866 | Ash Receptacle Assembly |
| 5 | 24146 | Armrest Clip |
| 6 | 31012 | Quarter Trim Panel |
| 7 | N803414-S58 | Screw (2 Req'd Each Side of Body) |
| 8 | N610963-S58 | Screw and Washer Assembly (2 Req'd Each Side of Body) |
| 9 | 380934-S36 | Screw, Drill Point (4 Req'd Each Side of Body) |
| 10 | N803103-S58 | U-Nut (2 Req'd Each Side of Body) |
| Item | Part Number | Description |
|---|---|---|

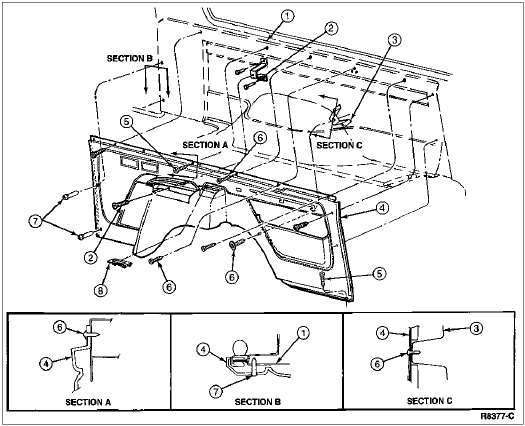

| 1 | 27840 | Body/Side Trim |
| 2 | 390934-S36 | Screw, Drill Point |
| 3 | — | Bracket (Part of 27840) |
| 4 | 31012 | Quarter Trim Panel |
| 5 | N800943-S303 | Screw, Round Washer Head |
| 6 | 381801-S58 | Screw and Washer, Oval Head |
| 7 | N800942-S58 | Screw and Washer, Oval Head |
| 8 | 601B30 | Rear Seat Shoulder Strap Opening Bezel |
