Trim Panel, Door

Removal

1. Remove screw(s) retaining the front arm rest pad (24100) to front door trim panel (23942).

2. Remove screw retaining inside door handle (22600). Remove inside door handle.

3. Remove the screw retaining window regulator handle, if equipped. Remove window regulator handle and washer.

4. If equipped with power windows, remove window regulator switch housing (14527). Refer to Section 01-11.

5. If equipped with power door locks, remove the power door lock switch housing. Refer to Section 01-14A.

6. Remove door lock switch (14028), if equipped. Refer to Section 01-14A.

7. Remove outside rear view mirror control (17B676), if equipped. Refer to Section 01-09.

8. Carefully pry front door trim panel and pushpins away from front door trim shield (237A04), using Rotunda Windshield and Moulding/Trim Removal Kit 107-R0401 or equivalent. Never pull on front door trim panel to remove pushpins from front door trim shield.

Installation

1. Follow removal procedures in reverse order.

2. Tighten screw and washer assembly 1-2 Nm (9-18 lb-in).

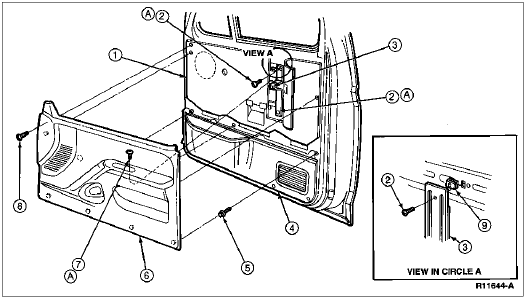

   Trim Panel, Door







   Item	Part Number	Description
   1	237A04	Front Door Trim Shield
   2	56914-S58	Screw and Washer (2 Req'd Each Side)
   3	24022	Armrest Support
   4	642A54	Map Pocket Assembly
   5	N802900-S	Pushpin (5 Req'd Each Side)
   6	23942	Front Door Trim Panel
   7	56914-S58	Screw (1 Req'd Each Side)
   8	N806578-S58	Screw and Washer (1 Req'd Each Side)
   9	N802539-S100	Spring Nut (2 Req'd Each Side)
   A	—	Tighten to 1-2 Nm (9-18 Lb-In)

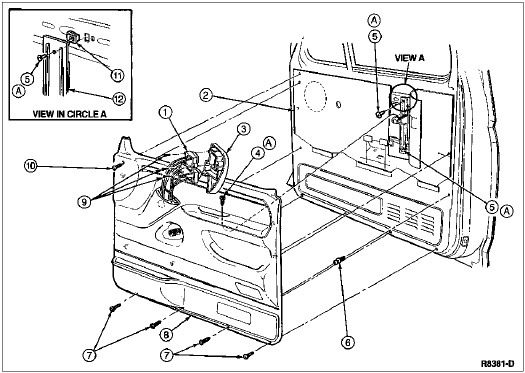

   Trim Panel, Door, Hi-Series







   Item	Part Number	Description
   1	—	Window Regulator Control Wiring (Part of 14630)
   2	237A04	Front Door Trim Shield
   3	14527	Window Regulator Switch Housing
   4	56912-S58	Screw (1 Req'd Each Side)
   5	56914-S58	Screw and Washer
   6	N801925-S	Pushpin (5 Req'd Each Side)
   7	N805121-S303	Screw and Washer Assembly (4 Req'd Each Side)
   8	23942	Front Door Trim Panel
   9	55928-S2	Screw (3 Req'd Each Side)
   10	N806578-S58	Screw and Washer (1 Req'd Each Side)
   11	N802539-S100	Spring — Nut
   12	24022	Armrest Support
   A	—	Tighten to 1-2 Nm (9-18 Lb-In)

Door Electrical Connections

Refer to Section 01-11 for power window, Section 01-09 for power mirror or Section 01-14A for power locks.
