Trim Panel, Cowl Side
Section 01-05: Trim, Interior | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Interior trim panels are attached to body panels with screws and/or metal strips. The removal and installation procedures are as shown in the assembly illustrations. Access to some panels, however, requires prior removal of other parts. Removal procedures for these parts are incorporated in the procedure or referenced to the appropriate section.
Trim Panel, Cowl Side
| Item | Part Number | Description |
|---|---|---|
| 1 | 02012 | Cowl Top Outer Panel (RH and LH) |
| 2 | N805612-S100 | Pushpin |
| 3 | 02344 | Cowl Side Panel |
| 4 | 56910-S55 | Screw |
| 5 | 023A60 | Cowl Side Panel Insulator (RH) |
| 6 | — | Screw (Part of 02354) |
| 7 | N806854-S | Nut (Nylon) |
| 8 | 02354 | Cowl Side Trim Panel Retainer |

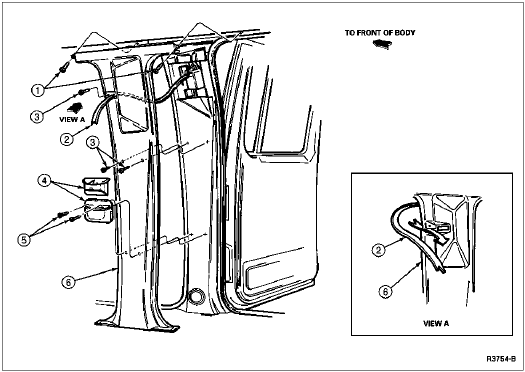

| Item | Part Number | Description |
|---|---|---|
| 1 | 381801-S2 | Screw |
| 2 | 611B08 | Front Safety Belt Retractor and Tongue |
| 3 | N800942 | Screw |
| 4 | 22A30 | Ash Receptacle |
| 5 | 385993-S2 | Screw |
| 6 | 24356 | Center Body Pillar Inside Upper Finish Panel |

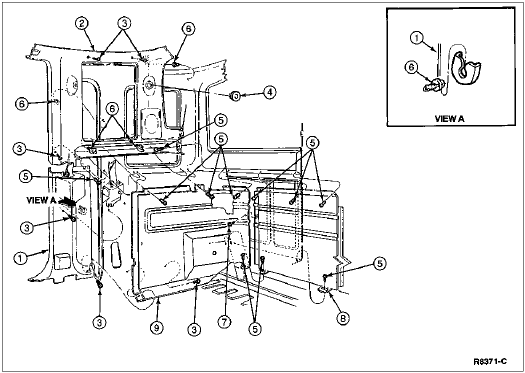

| Item | Part Number | Description |
|---|---|---|
| 1 | 281A32 | Center Body Trim Panel |
| 2 | 519A96 | Roof Side Rear Trim Panel |
| 3 | N800942-S58 | Screw |
| 4 | 611B32 | Button Plug |
| 5 | 381801-S58 | Screw |
| 6 | N802900 | Pushpin |
| 7 | 56928-S58 | Screw |
| 8 | 40374 | Back Lower Trim Panel |
| 9 | 278D12 | Rear Corner Trim Panel |
