Section 01-05: Trim, Interior | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
The installation of the plastic and steel interior mouldings are shown in the following illustrations. In most instances, one moulding overlaps another moulding. If this condition is found, it will be necessary to loosen or remove the overlapping moulding before removing the desired moulding.

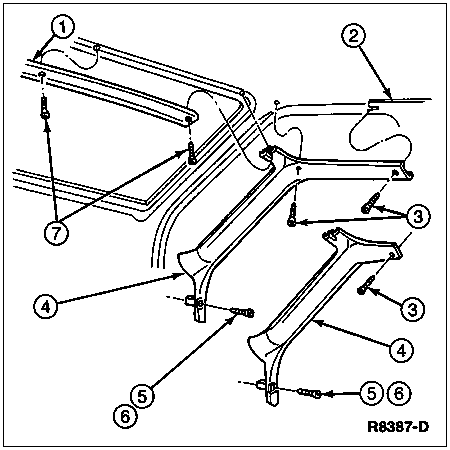

Windshield Moulding
Item | Part Number | Description |
---|---|---|
1 | 03606 | Windshield Garnish Moulding |
2 | 24356 | Body Pillar Trim Panel |
3 | N801157-S58 | Screw and Washer |
4 | 03598 | Windshield Side Garnish Moulding |
5 | N806878-S58 | Screw and Washer (RH) |
6 | N804992-S424 | Screw and Washer (LH) |
7 | N806578-S58 | Screw and Washer (1 Req'd Each Side) |

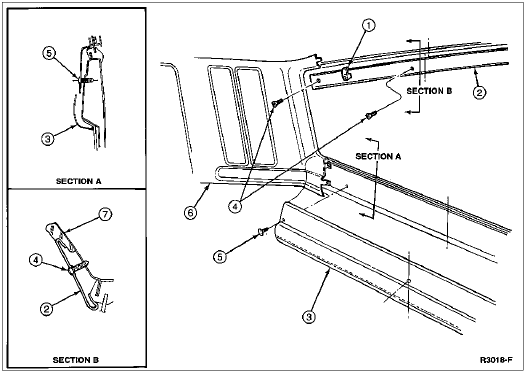

Item | Part Number | Description |
---|---|---|
1 | 517C04 | Roof Trim Rear Moulding |
2 | 29004 | Quarter Window Garnish Lower Front Moulding |
3 | N8071545-SW | Pushpin (6 Req'd Each Side) |
4 | N807372-S | Pushpin, Nylon (2 Req'd Each Side) |
5 | 29010 | Quarter Rear Window Garnish Rear Moulding |
6 | 29126 | Body Side Window Garnish Moulding Front Bracket |
7 | N800486-S9 | Bolt and Washer |
8 | N801157-S58 | Screw and Washer (2 Req'd Each Side, 1 Req'd Center) |
9 | 518B34 | Roof Trim Rear Moulding Joint Cover |
10 | 29070 | Body Side Window Garnish Moulding Bracket |

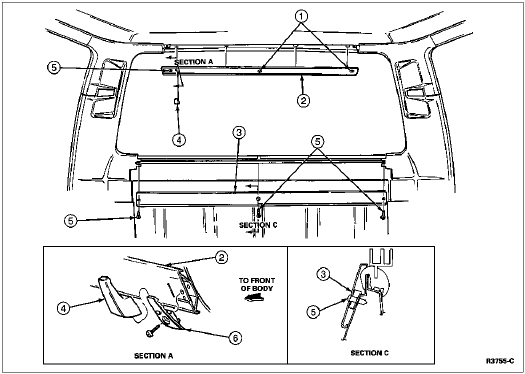

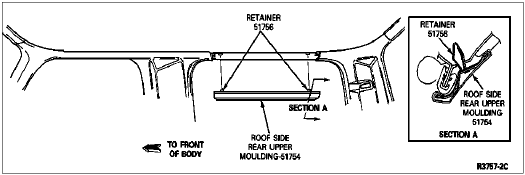

Item | Part Number | Description |
---|---|---|
1 | 29024 | Coat Hook Cover |
2 | 42410 | Moulding |
3 | 42456 | Back Window Garnish Lower Moulding |
4 | N800942-S58 | Screw |
5 | N801157-S58 | Screw |
6 | 52018 | Panel |
7 | 51968 | Roof Trim Panel |
Item | Part Number | Description |
---|---|---|
1 | N800942-S2 | Screw (3 Req'd) |
2 | 42324 | Liftgate Moulding |
3 | 42304 | Back Window Garnish Lower |
4 | 29024 | Coat Hook Cover |
5 | N800942-S2 | Screw |
6 | 29232 | Retainer |
