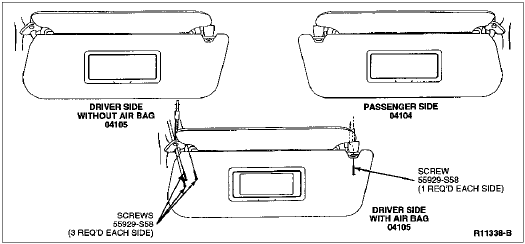

Bronco — XLT Dual Sun Visors
Section 01-05: Trim, Interior | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |

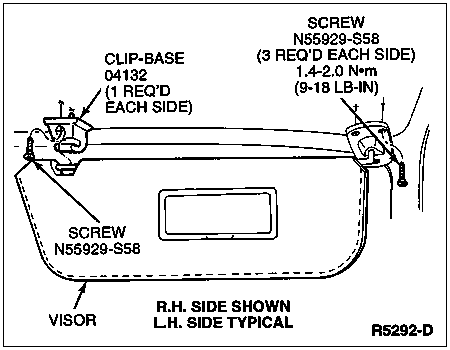

Removal
If equipped with lighted vanity mirror, disconnect battery ground cable (14301).
Remove screws attaching visor clip to roof headliner.
Disconnect harness connector.
Installation
Connect harness connector.
Position visor clip to roof headliner and install screws. Tighten to 1.4-2.0 Nm (9-18 lb-in).
If equipped with lighted vanity mirror, connect battery ground cable.
