Pickup Box Adjustments

The valance and body side panels can be slightly adjusted by loosening attaching bolts. However, if the panels cannot be aligned satisfactorily, check the attaching brackets and underbody for damage.

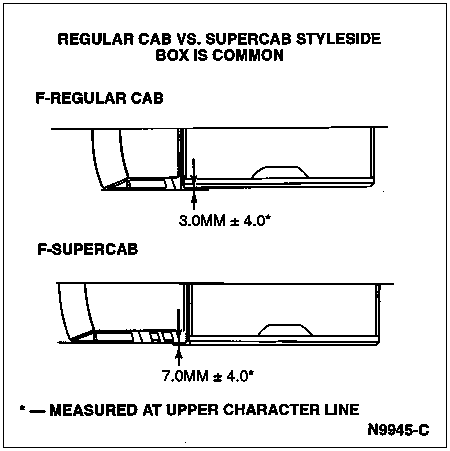

The pickup box design is the same for both F-Series SuperCab and Regular Cab. The rear of the regular cab body is 3mm (.11 inch) wider on each side than the front width of the pickup box. However, on SuperCab vehicles, the front of the pickup box is 7mm (.27 inch) wider on each side than the rear width of the cab body.

If there is a cab-to-box alignment concern, use the following instructions.
